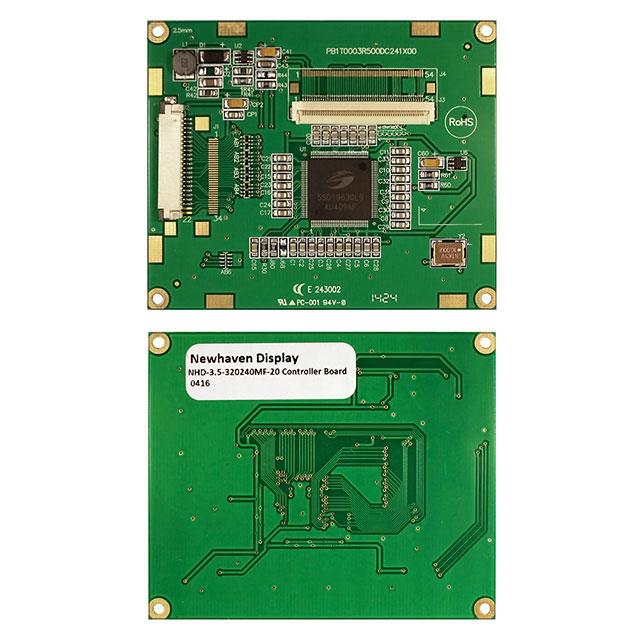

NHD-3.5-320240MF-20

Active

Newhaven Display Intl

BOARD CTRLR FOR NHDEV 3.5 TFT

Deep-Dive with AI

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.79
		5	$ 31.80

Description

General part information

NHD-3.5 Series

SSD1963 - LCD Controller Display Evaluation Board

Documents

Technical documentation and resources

LCD Solvent Precautions

LCD Safe Handling Procedure

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-3.5-320240MF-20	NHD-3.5 Series

	-	-
Accessory Type	-	Interface Board
Backlight	-	Without Backlight, LED - White, LED
Contents	Board(s)	Cable(s), Board(s)
Controller Type	-	ST7272A, FT813, FT812, NV3035C, FT5426
Display Mode	-	Transmissive
Display Type	-	TFT - Color
Dot Pitch	-	0.22 mm
Dot Pitch	-	0.22 mm
Dot Pixels	-	QVGA
Dot Pixels	-	320 pixels
Dot Pixels	-	240 pixels
Dot Size	-	0.07 mm
Dot Size	-	0.21 mm
Embedded	False	False
For Use With/Related Products	-	Newhaven Resistive Touch Panel
Function	LCD Controller	LCD Controller
Graphics Color	-	Green, Red, Blue, White
Interface	-	Parallel, SPI, 24-Bit (RGB), Parallel/Serial, I2C
Interface	-	24 Bit
Primary Attributes	For TFT Displays	For TFT Displays, TFT, COG Graphic, and Character LCD Displays
Secondary Attributes	-	PAL, NTSC
Supplied Contents	Board(s)	Cable(s), Board(s)
Touchscreen	-	Resistive, Capacitive
Type	Display	Display
Utilized IC / Part	SSD1963	TW8817, SSD1963
Viewing Area	-	52.56 - 72.1 mm
Viewing Area	-	70.08 - 72.8 mm
Viewing Area	-	54.6 mm

NHD-3.5 Series

LCD DISPLAY TFT 3.5" 320X240

Part	Backlight	Display Type	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Interface	Interface	Controller Type	Graphics Color	Viewing Area [y]	Viewing Area [x]	Touchscreen	Display Mode	Type	Utilized IC / Part	Supplied Contents	Function	Contents	Secondary Attributes
Newhaven Display Intl NHD-3.5-320240MF-ESXN#	Without Backlight	TFT - Color
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3	Without Backlight	TFT - Color
Newhaven Display Intl NHD-3.5-320240JF-ASXP-T	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	Parallel	24 Bit	ST7272A	Blue, Green, Red	55.05 mm	71.82 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1														Display	TW8817	Board(s), Cable(s)	LCD Controller	Board(s), Cable(s)	NTSC, PAL
Newhaven Display Intl NHD-3.5-320240FT-CTXL-CTP	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	SPI		FT813	Blue, Green, Red	53.16 mm	70.68 mm	Capacitive	Transmissive
Newhaven Display Intl NHD-3.5-320240MB-ASXN-T	LED - White	TFT - Color		320 pixels	240 pixels	Parallel	24 Bit		Blue, Green, Red	52.56 mm	70.08 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240MB-ASXN-CTP	LED - White	TFT - Color		320 pixels	240 pixels	Parallel	24 Bit		Blue, Green, Red	52.56 mm	70.08 mm	Capacitive	Transmissive
Newhaven Display Intl NHD-3.5-320240FT-CTXL-T	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	SPI		FT812	Blue, Green, Red	55.05 mm	71.82 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240JF-ASXP	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	Parallel	24 Bit	ST7272A	Blue, Green, Red	52.56 mm	70.08 mm		Transmissive
Newhaven Display Intl NHD-3.5-320240MF-ATXL-1AM	Without Backlight	TFT - Color
