1241965-4
ActiveTE Connectivity AMP Connectors

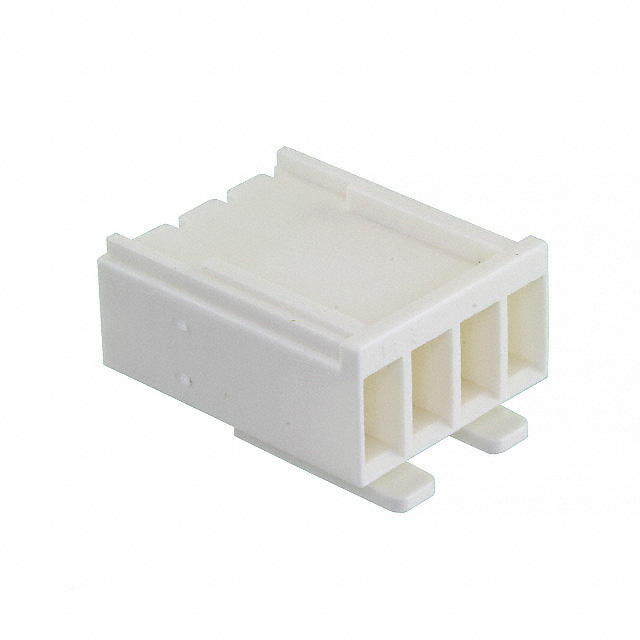

CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
1241965-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241965-4 | 1241965 Series |
|---|---|---|
| Color | Natural | Red, Natural, Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 2 - 8 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20000 | $ 0.38 | |
1241965 Series
CONN RCPT HSG 2POS 5.00MM
| Part | Fastening Type | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Note | Connector Type | Mounting Type | Pitch [x] | Pitch [x] | Contact Termination | Number of Rows | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1241965-2 | Latch Lock | Female Socket | 2 | -40 °C | 105 ░C | Contacts Not Included | Receptacle | Free Hanging (In-Line) | 5 mm | 0.197 in | Crimp | 1 | Red |
TE Connectivity AMP Connectors 1-1241965-7 | Latch Lock | Female Socket | 7 | -40 °C | 105 ░C | Contacts Not Included | Receptacle | Free Hanging (In-Line) | 5 mm | 0.197 in | Crimp | 1 | Natural |
TE Connectivity AMP Connectors 1241965-4 | Latch Lock | Female Socket | 4 | -40 °C | 105 ░C | Contacts Not Included | Receptacle | Free Hanging (In-Line) | 5 mm | 0.197 in | Crimp | 1 | Natural |
TE Connectivity AMP Connectors 2-1241965-6 | Latch Lock | Female Socket | 6 | -40 °C | 105 ░C | Contacts Not Included | Receptacle | Free Hanging (In-Line) | 5 mm | 0.197 in | Crimp | 1 | Natural |
TE Connectivity AMP Connectors 3-1241965-2 | Latch Lock | Female Socket | 2 | -40 °C | 105 ░C | Contacts Not Included | Receptacle | Free Hanging (In-Line) | 5 mm | 0.197 in | Crimp | 1 | Blue |
TE Connectivity AMP Connectors 1241965-8 | Latch Lock | Female Socket | 8 | -40 °C | 105 ░C | Contacts Not Included | Receptacle | Free Hanging (In-Line) | 5 mm | 0.197 in | Crimp | 1 | Natural |
Description
General part information
1241965 Series
4 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
Documents
Technical documentation and resources
No documents available
