PE3117LF-24
ActivePasternack

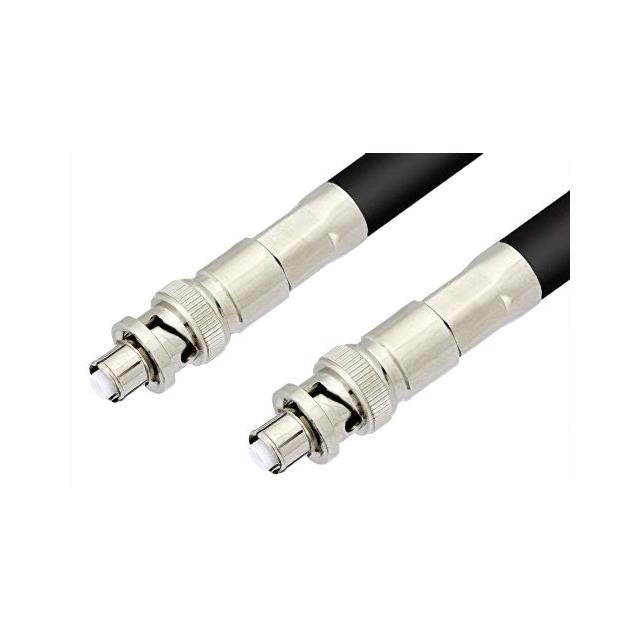

SHV PLUG TO SHV PLUG CABLE 24 IN
PE3117LF-24
ActivePasternack
SHV PLUG TO SHV PLUG CABLE 24 IN
Description
General part information
PE3117LF-24
Cable Assembly Coaxial SHV to SHV RG-214 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3117LF-24 |
|---|---|
| 1st Connector | SHV Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SHV Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 300 MHz |
| Length | 24 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SHV |
