1217917-2
ActiveTE Connectivity Raychem Cable Protection
CONN QC RCPT 14-18AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
1217917-2
ActiveTE Connectivity Raychem Cable Protection
CONN QC RCPT 14-18AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217917-2 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 0.17 in |
| Insulation Diameter [Max] | 4.32 mm |
| Insulation Diameter [Min] | 0.12 in |
| Insulation Diameter [Min] | 3.05 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.75 mm |
| Tab Length | 0.305 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1217917 Series

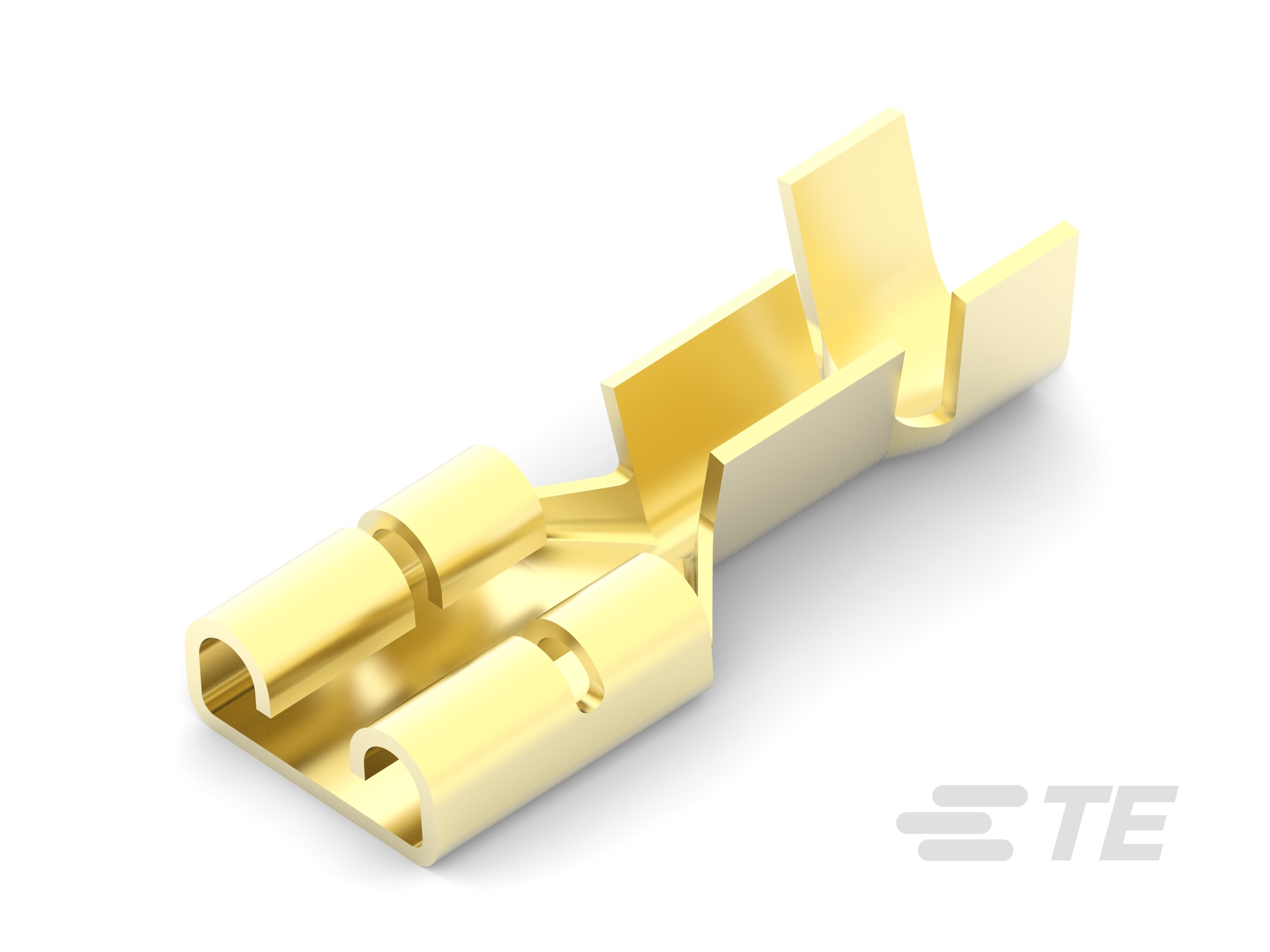

0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
