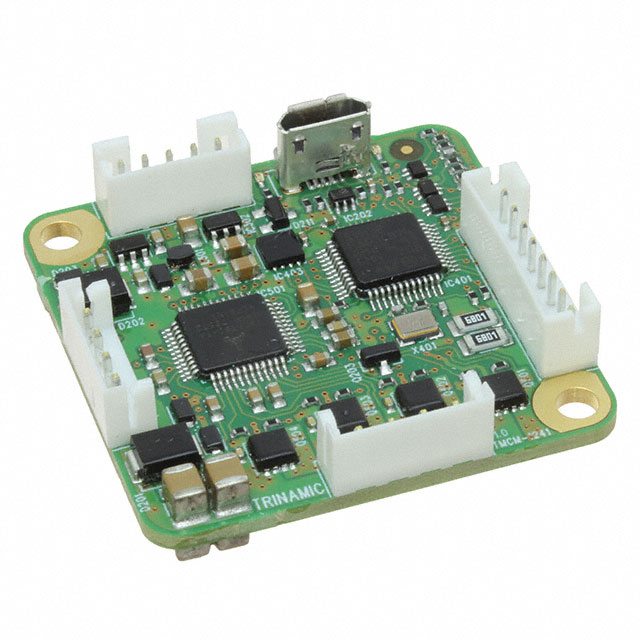

TMCM-1241-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 3A 10-30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1241-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 3A 10-30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1241-TMCL | TMCM-1241 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 3 A | 3 A |
| For Use With/Related Products | - | TMCM-1241 Series |
| Interface | CAN, USB, RS-485 | CAN, USB, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Specifications | - | 200 mm |
| Type | Board | Board |
| Usage | - | Communications |
| Voltage - Supply [Max] | 30 VDC | 30 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 216.30 | |
TMCM-1241 Series
CABLE LOOM FOR TMCM-1241
| Part | Specifications | For Use With/Related Products | Accessory Type | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Control / Drive Type | Mounting Type | Motor Type | Type | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1241-CABLE | 200 mm | TMCM-1241 Series | Cable Assembly | Communications | ||||||||||
Analog Devices Inc./Maxim Integrated TMCM-1241-CANOPEN | -30 ░C | 60 °C | 3 A | Bipolar, Stepper | Chassis Mount | Stepper | Board | CAN, RS-485, USB | 30 VDC | 10 VDC | ||||
Analog Devices Inc./Maxim Integrated TMCM-1241-TMCL | -30 ░C | 60 °C | 3 A | Bipolar, Stepper | Chassis Mount | Stepper | Board | CAN, RS-485, USB | 30 VDC | 10 VDC |
Description
General part information
TMCM-1241 Series
Stepper, Bipolar 10 ~ 30VDC Supply 3A Load
Documents
Technical documentation and resources
