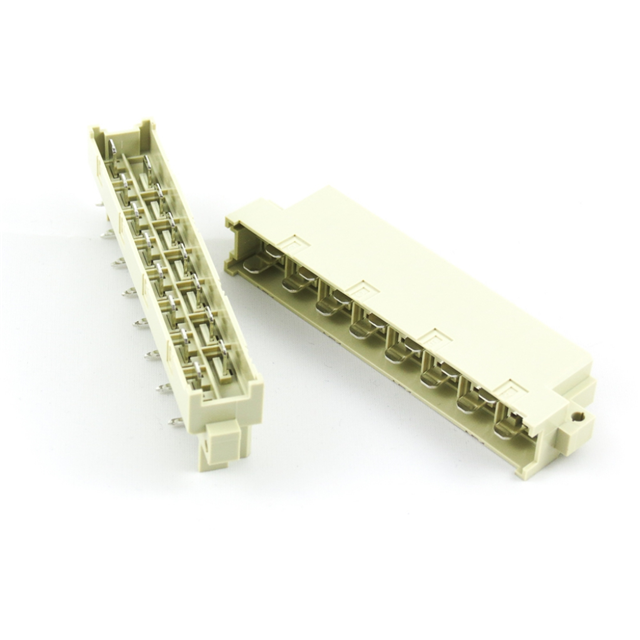

9001-51151AA
ActiveOupiin
DIN41612, MALE, H15 TYPE, 15 PIN
Deep-Dive with AI
Search across all available documentation for this part.
9001-51151AA
ActiveOupiin
DIN41612, MALE, H15 TYPE, 15 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001-51151AA |
|---|---|
| Connector Type | Male Blades, Header |
| Contact Finish | Silver |
| Contact Finish Thickness | Flash |
| Current Rating (Amps) | 15 A |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Style | H 15 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.35 | |
| 100 | $ 6.86 | |||
| 200 | $ 5.63 | |||
| 300 | $ 4.41 | |||
| 400 | $ 3.19 | |||
Description
General part information
9001-51151AA
15 (Power) Position Din Connector Header, Male Blades Silver Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
