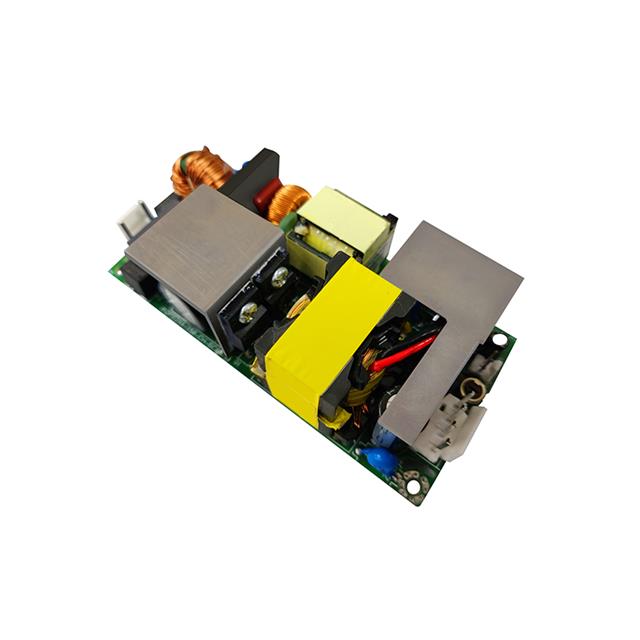

OPS2X4-150-12-A-1-CU
ActiveSelec Controls USA Inc.
AC/DC CONVERTER 12V 100W
OPS2X4-150-12-A-1-CU
ActiveSelec Controls USA Inc.
AC/DC CONVERTER 12V 100W
Description
General part information
OPS2X4-150-12-A-1-CU
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | OPS2X4-150-12-A-1-CU |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cULus |
| Current - Output 1 | 12.5 A |
| Efficiency | 87 % |
| Features | Adjustable Output, PFC, Universal Input, Standby Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 100 W, 150 W |
| Size / Dimension Height | 1.16 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
