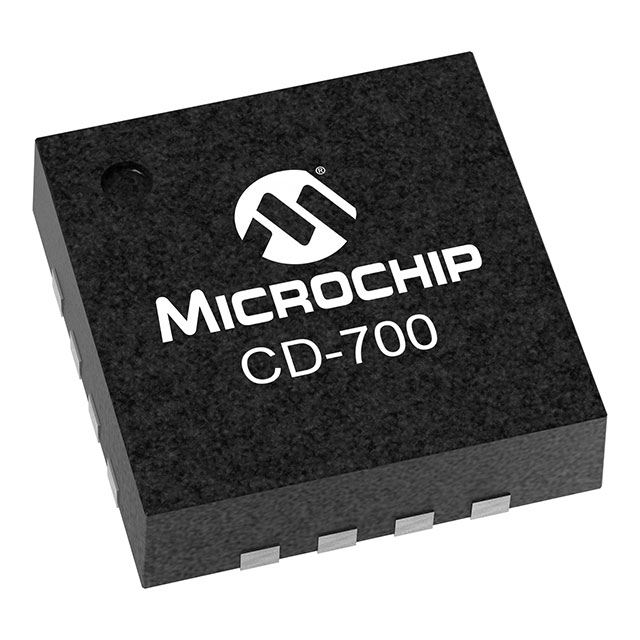

CD-700-EAE-KANN-32M0000000
ObsoleteMicrochip Technology
CD-700-EAE-KANN-32M0000000
CD-700-EAE-KANN-32M0000000
ObsoleteMicrochip Technology
CD-700-EAE-KANN-32M0000000
Description
General part information
CD-700-EAE-KANN-32M0000000
CMOS VCXO Pin Configurable Oscillator 3.3V 16-CSMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CD-700-EAE-KANN-32M0000000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 63 mA |
| Frequency - Output 1 | 32 MHz |
| Frequency - Output 2 | 16 MHz |
| Frequency Stability | 75 ppm |
| Height | 0.084 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | No Lead, 16-CSMD |
| Package Length | 7.49 mm |
| Package Name | 16-CSMD |
| Package Width | 5.08 mm |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.2 in |
| Type | VCXO |
| Voltage - Supply | 3.3 V |
