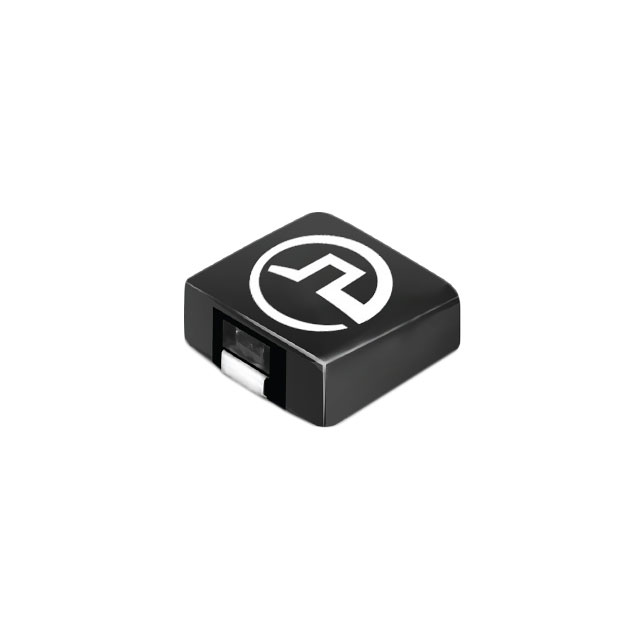

PG0426.221NLT
ActivePulse Electronics
FIXED IND 220NH 26A 2.2 MOHM SMD
PG0426.221NLT
ActivePulse Electronics
FIXED IND 220NH 26A 2.2 MOHM SMD
Description
General part information
PG0426.221NLT
220 nH Shielded Wirewound Inductor 26 A 2.2mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PG0426.221NLT |
|---|---|
| Current - Saturation (Isat) | 40 A |
| Current Rating | 26 A |
| DC Resistance (DCR) (Max) | 2.2 mOhm |
| Height - Seated (Max) | 0.126 in |
| Inductance | 220 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 20 % |
| Type | Wirewound |
