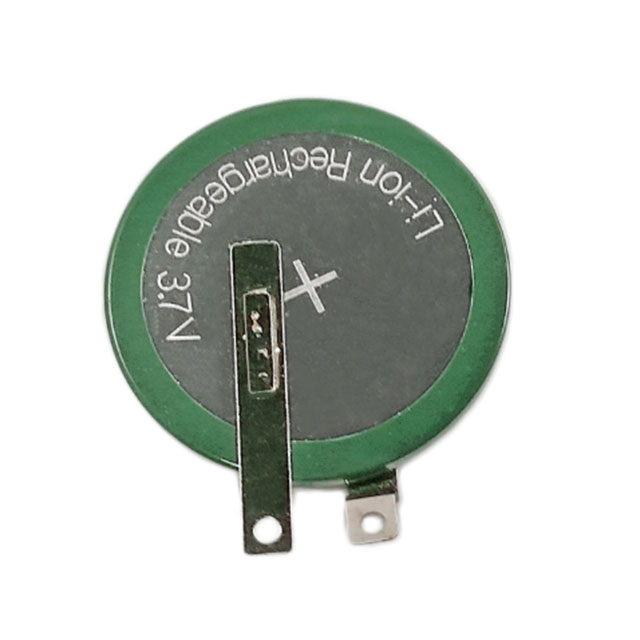

RJD3555ST1
ObsoleteCornell Dubilier Knowles
BATT LITH-ION 3.7V 500MAH COIN
RJD3555ST1
ObsoleteCornell Dubilier Knowles
BATT LITH-ION 3.7V 500MAH COIN
Description
General part information
RJD3555ST1
Coin, 35.0mm 3.7 V Lithium-Ion Battery Rechargeable (Secondary) 500mAh
Technical Specifications
Parameters and characteristics for this part
| Specification | RJD3555ST1 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 35 mm |
| Battery Chemistry | Lithium-Ion |
| Capacity (Charge) | 500 mAh |
| Discharge Rate (Current) | 100 mA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 1.39 in |
| Size / Dimension Height | 0.22 in |
| Standard Charge Current | 250 mA |
| Termination Style | SMD (SMT) Tab |
| Voltage - Rated | 3.7 V |
| Weight | 14 g |
