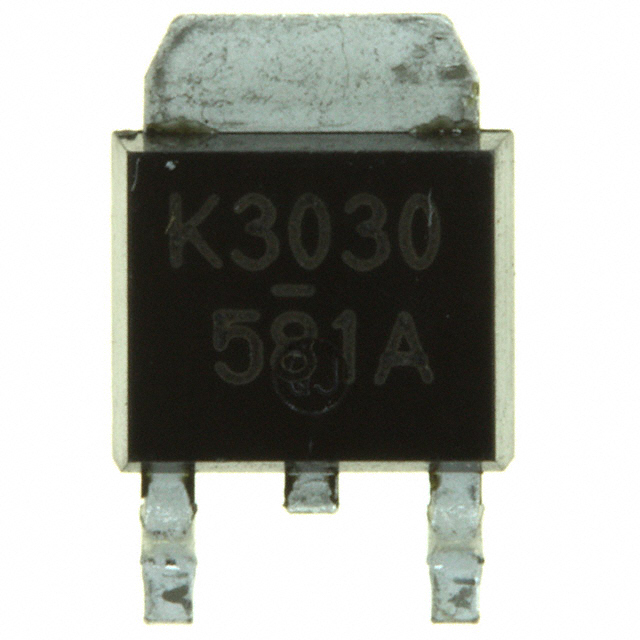

2SK303000L
ObsoletePanasonic Electronic Components
MOSFET N-CH 100V 8A U-G1
2SK303000L
ObsoletePanasonic Electronic Components
MOSFET N-CH 100V 8A U-G1
Description
General part information
2SK303000L
N-Channel 100 V 8A (Tc) 1W (Ta), 15W (Tc) Surface Mount U-G1
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SK303000L |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 8 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On) | 4 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) | 290 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Package Name | U-G1 |
| Power Dissipation (Max) | 1 W, 15 W |
| Rds On (Max) | 230 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 2.5 V |
