U86-D1627-10121

Obsolete

Amphenol ICC (Commercial Products)

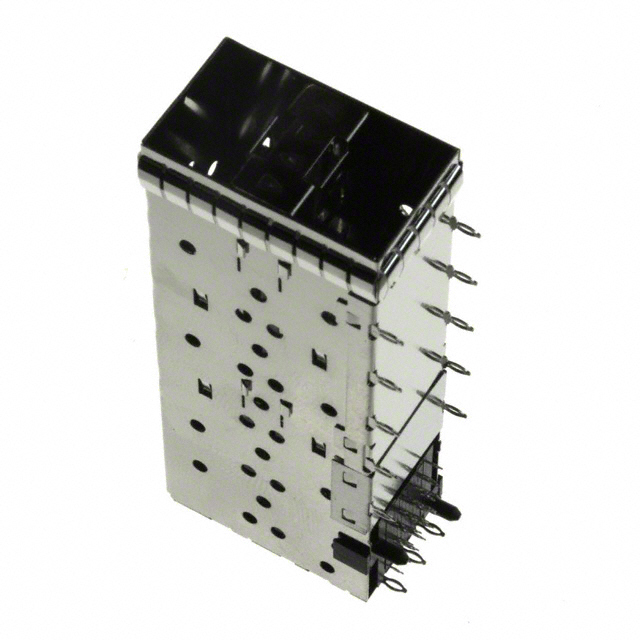

CONN SFP+ RCPT W/CAGE 2X1 40P RA

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

CONN SFP+ RCPT W/CAGE 2X1 40P RA

Technical Specifications

Parameters and characteristics for this part

Specification	U86-D1627-10121

Connector Style	Ganged (2x1), Receptacle with Cage
Connector Type	SFP+
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Light Pipe
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Termination	Press-Fit

Part	Contact Finish	Features	Termination	Connector Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions [x]	Number of Positions [custom]	Number of Positions [y]	Number of Positions	Number of Positions [custom]	Number of Positions [custom]
Amphenol ICC (Commercial Products) U86-D1427-10121	Gold	Board Guide EMI Shielded Light Pipe	Press-Fit	SFP+	Through Hole Right Angle	40	0.76 Ám	30 Áin	Ganged (2x1) Receptacle with Cage
Amphenol ICC (Commercial Products) U86-D6627-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x6) Receptacle with Cage	20	240	12
Amphenol ICC (Commercial Products) U86-D2127-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x2) Receptacle with Cage				80	20	4
Amphenol ICC (Commercial Products) U86-D6427-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x6) Receptacle with Cage	20	240	12
Amphenol ICC (Commercial Products) U86-D1627-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle	40	0.76 Ám	30 Áin	Ganged (2x1) Receptacle with Cage
Amphenol ICC (Commercial Products) U86-D2427-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x2) Receptacle with Cage				80	20	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 (20 x 2) Position SFP+ Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle
