TS1102-50EG5T
ObsoleteSilicon Labs
IC CURR SENSE 1 CIRCUIT SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS1102-50EG5T
ObsoleteSilicon Labs
IC CURR SENSE 1 CIRCUIT SOT23-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS1102-50EG5T |
|---|---|
| -3db Bandwidth | 6 kHz |
| Amplifier Type | Current Sense |
| Current - Supply | 680 nA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |

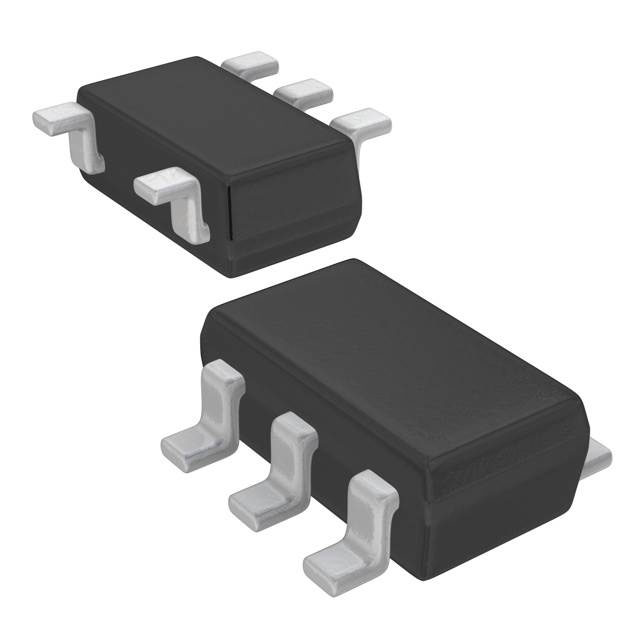

| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input Offset | 30 çV |
| Voltage - Supply Span (Max) [Max] | 25 V |
| Voltage - Supply Span (Min) [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TS1102-50EG5T
Current Sense Amplifier 1 Circuit SOT-23-5
