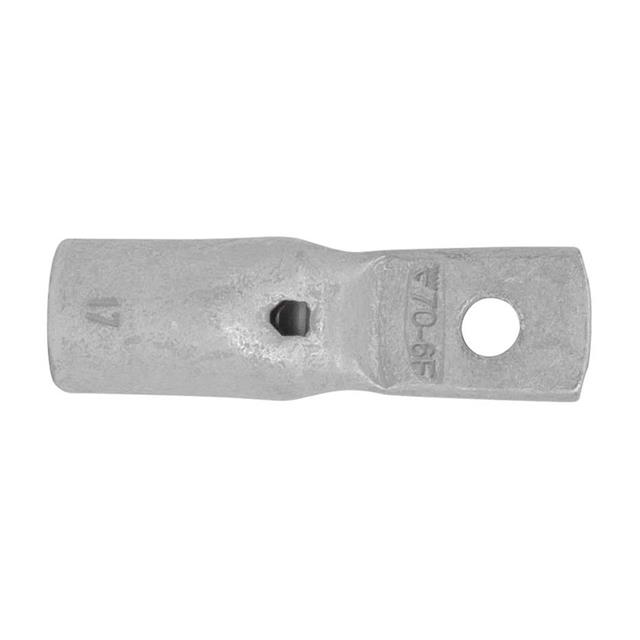

KRFS70-6
ActiveElpress Inc.
RING NARROW TONGUE 70MM M6, 1/0
KRFS70-6
ActiveElpress Inc.
RING NARROW TONGUE 70MM M6, 1/0
Description
General part information
KRFS70-6
Terminal Connector Rectangular Ring, Tubular 2 AWG M6 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRFS70-6 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 2.283 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M6 Stud, M6 |
| Tab Thickness | 0.177 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 0.669 in |
| Wire Gauge | 2 AWG |
