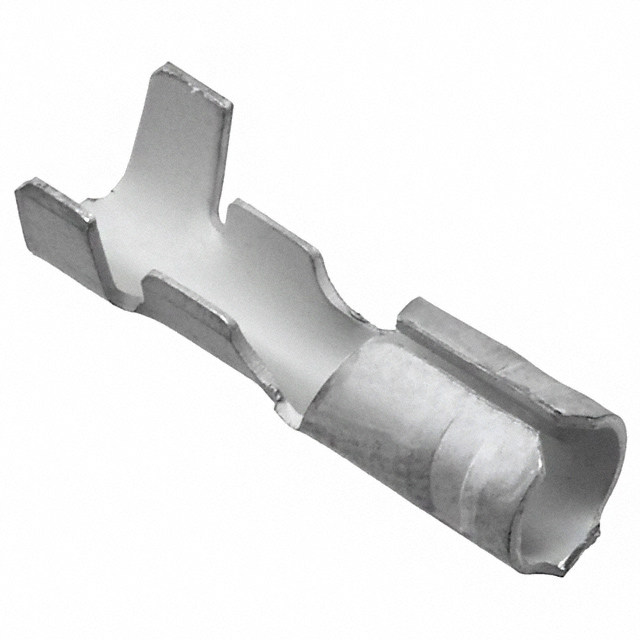

140712-2
ActiveTE Connectivity AMP Connectors
CONN TERM RCPT 14-18AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140712-2
ActiveTE Connectivity AMP Connectors
CONN TERM RCPT 14-18AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 140712-2 | 140712 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| Diameter - Barrel [diameter] | 0.157 " | 0.157 " |
| Diameter - Barrel [diameter] | 4 mm | 4 mm |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] | 4.45 mm, 0.175 in | 0.175 - 4.45 mm |
| Insulation Diameter [Min] | 3.3 mm, 0.13 " | 0.13 - 3.3 mm |
| Length - Barrel [x] | 6.35 mm | 6.35 mm |
| Length - Barrel [x] | 0.25 in | 0.25 in |
| Length - Overall [x] | 0.689 in | 0.689 in |
| Length - Overall [x] | 17.5 mm | 17.5 mm |
| Terminal Type | Female, Receptacle (Socket) | Female, Receptacle (Socket) |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
140712 Series
CONN TERM RCPT 14-18AWG CRIMP
| Part | Contact Material | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Termination | Length - Overall [x] | Length - Overall [x] | Length - Barrel [x] | Length - Barrel [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 140712-1 | Brass | Female, Receptacle (Socket) | 14 AWG | 18 AWG | Tin | 0.175 in, 4.45 mm | 0.13 ", 3.3 mm | Non-Insulated | 0.157 " | 4 mm | Crimp | 0.689 in | 17.5 mm | 6.35 mm | 0.25 in |
TE Connectivity AMP Connectors 140712-2 | Brass | Female, Receptacle (Socket) | 14 AWG | 18 AWG | Tin | 0.175 in, 4.45 mm | 0.13 ", 3.3 mm | Non-Insulated | 0.157 " | 4 mm | Crimp | 0.689 in | 17.5 mm | 6.35 mm | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| Tape & Reel (TR) | 5000 | $ 0.10 | ||
Description
General part information
140712 Series
Terminal Connector Female, Receptacle (Socket) 14-18 AWG Crimp Tin
