RCS080513K3FKEA
ActiveVishay Dale
RES SMD 13.3K OHM 1% 1/2W 0805
RCS080513K3FKEA
ActiveVishay Dale
RES SMD 13.3K OHM 1% 1/2W 0805
Description
General part information
RCS080513K3FKEA

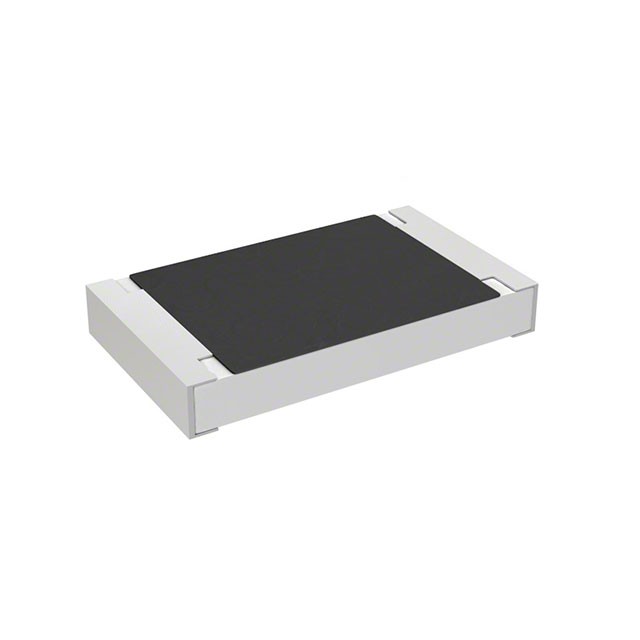

13.3 kOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RCS080513K3FKEA |
|---|---|
| Composition | Thick Film |
| Features | Pulse Withstanding, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 500 mW, 750 mW |
| Power (Watts) Options | 1/2W, 3/4W |
| Ratings | AEC-Q200 |
| Resistance | 13.3 kOhm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
