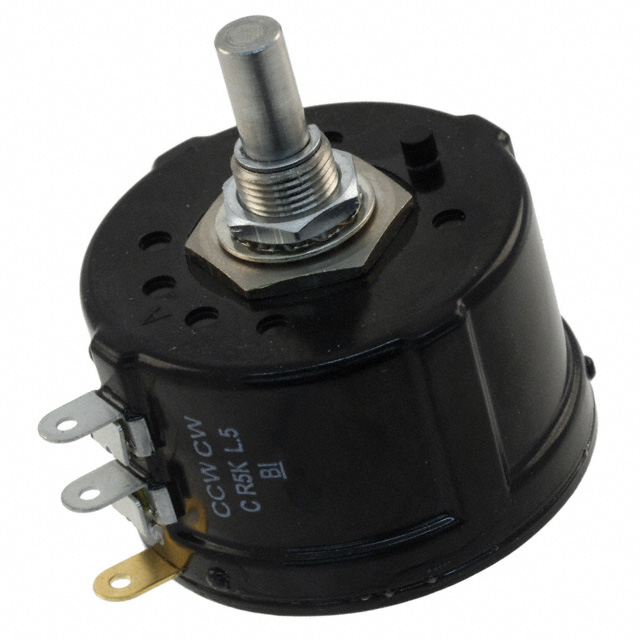

CR5KL.5
ActiveTT Electronics/BI
POT 5K OHM 3W WIREWOUND LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR5KL.5
ActiveTT Electronics/BI
POT 5K OHM 3W WIREWOUND LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR5KL.5 |
|---|---|
| Actuator Diameter [diameter] | 6.34 mm |
| Actuator Diameter [diameter] | 0.2497 in |
| Actuator Length [x] | 20.6 mm |
| Actuator Length [x] | 0.811 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 3 |
| Power (Watts) | 3 W |
| Resistance (Ohms) | 5 kOhms |
| Resistive Material | Wirewound |
| Rotation | 1080 ° |
| Size - Body [diameter] | 1.812 in |
| Size - Body [diameter] | 46.03 mm |
| Taper | Linear |
| Temperature Coefficient | 130 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 234.89 | |
| 10 | $ 196.62 | |||
Description
General part information
CR5 Series
5k Ohm 1 Gang Linear Panel Mount Potentiometer 3.0 Turns Wirewound 3W Solder Lug
