Description
General part information

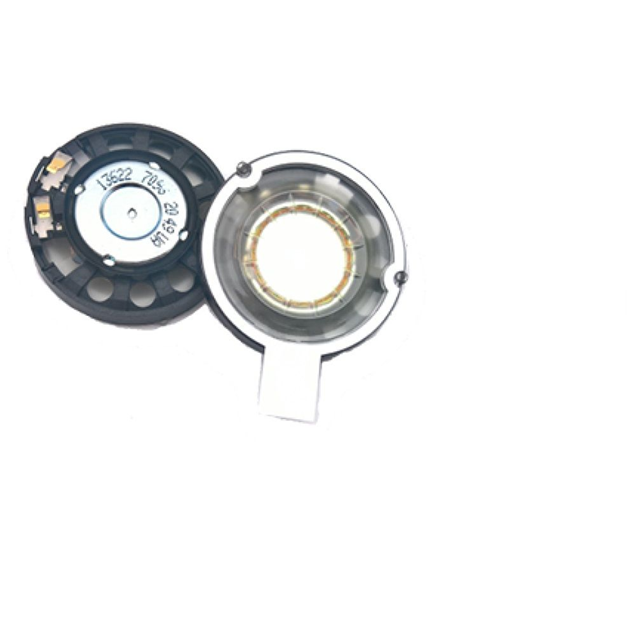

WD11903Y8H
8 Ohms Low Profile Speaker 500 mW 450 Hz ~ 8 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | WD11903Y8H |
|---|---|
| Efficiency - dBA | 86.5 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 700 Hz |
| Frequency Range (Max) | 8 kHz |
| Frequency Range (Min) | 450 Hz |
| Height - Seated (Max) | 0.236 in |
| Impedance | 8 Ohm |
| Ingress Protection | Water Resistant |
| Material - Cone | Polyarylate (PAR) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension Diameter | 1.102 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | Low Profile |
