AB7050HF

Active

3M (TC)

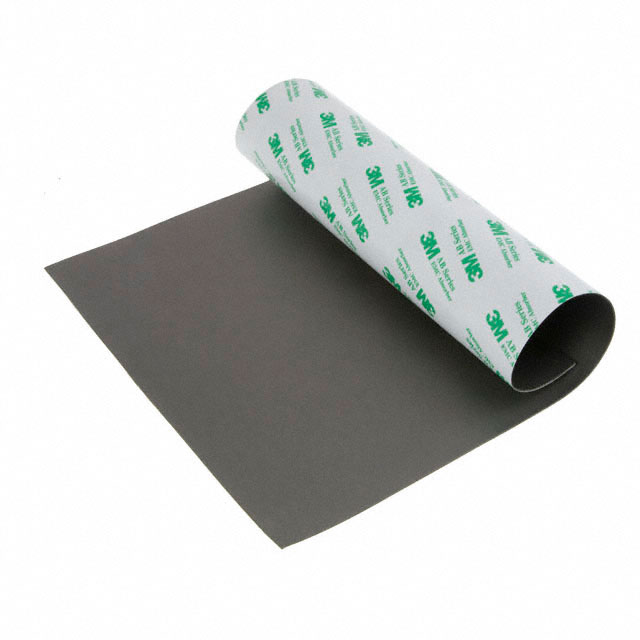

80611449606 AB7050HF EMI RFID ABSORBER 8.26" X 11.69" SAMPLE SWATCH

Search across all available documentation for this part.

Active

3M (TC)

80611449606 AB7050HF EMI RFID ABSORBER 8.26" X 11.69" SAMPLE SWATCH

Technical Specifications

Parameters and characteristics for this part

Specification	AB7050HF

Adhesive	Single Sided, Non-Conductive
Length [x]	11.693 in
Length [x]	297 mm
Material	Metal Flakes, Polymer Resin
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.022 in
Thickness - Overall	0.55 mm
Type	Absorbing Sheet
Width [x]	210 mm
Width [x]	8.268 in

Part	Adhesive	Shelf Life Start	Width [x]	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Length [x]	Length [x]	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thickness - Overall	Thickness - Overall	Shelf Life	Type
3M (TC) AB7050HF	Non-Conductive Single Sided	Date of Shipment	210 mm	8.268 in	-25 °C	85 °C	Metal Flakes Polymer Resin	11.693 in	297 mm	Rectangular	70 °F	21 °C	0.022 in	0.55 mm	12 Months	Absorbing Sheet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Absorbing Sheet AB7000HF Polymer Resin, Metal Flakes Non-Conductive, Single Sided 8.268" (210.00mm) X 11.693" (297.00mm) X 0.022" (0.55mm)
