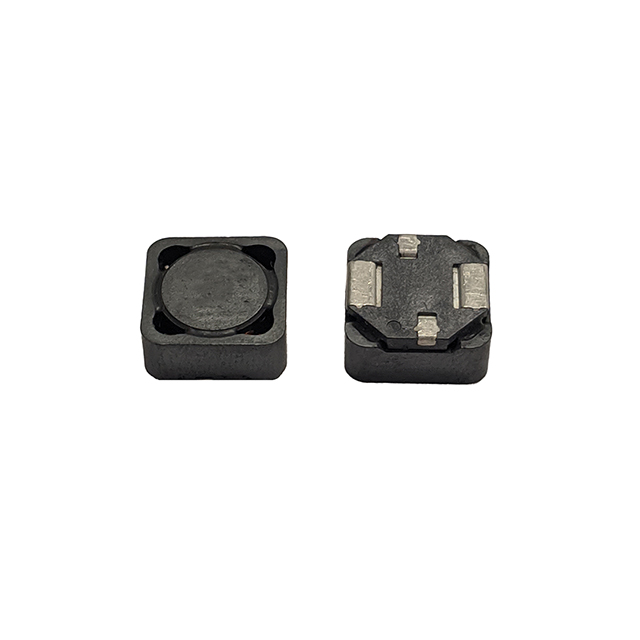

DRAP125-821-R
ActiveEaton - Electronics Division
FIXED IND 820UH 632MA 1.63OHM SM
DRAP125-821-R
ActiveEaton - Electronics Division
FIXED IND 820UH 632MA 1.63OHM SM
Description
General part information
DRAP125-821-R
820 µH Shielded Inductor 632 mA 1.63Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | DRAP125-821-R |
|---|---|
| Current - Saturation (Isat) | 758 mA |
| Current Rating | 632 mA |
| DC Resistance (DCR) (Max) | 1.63 Ohm |
| Height - Seated (Max) | 0.24 in |
| Inductance | 0.82 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
