W3961B0050
ActivePulse Electronics

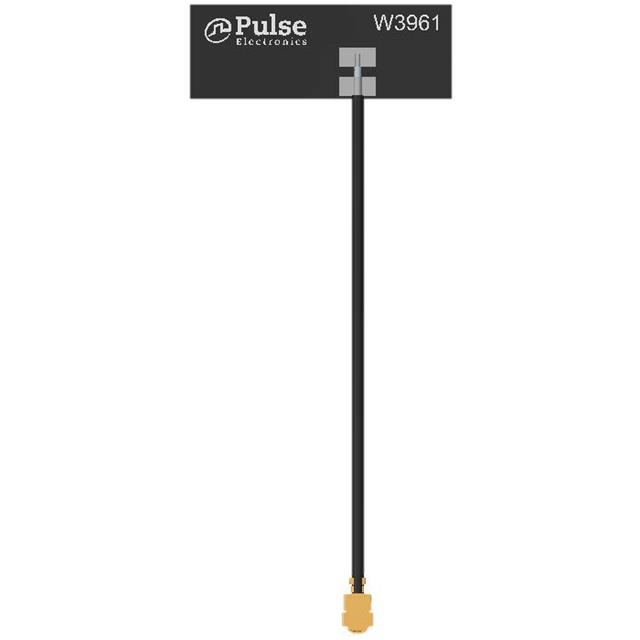

ANT CBRS FPC 3550-3980MHZ 50MM
W3961B0050
ActivePulse Electronics
ANT CBRS FPC 3550-3980MHZ 50MM
Description
General part information
W3961B0050
RF ANTENNA General Purpose PCB Trace U.FL Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | W3961B0050 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | General Purpose |
| Features | Cable, 50mm |
| Frequency (Center/Band) | 3.765 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 3 GHz |
| Frequency Range (Max) | 3.98 GHz |
| Frequency Range (Min) | 3.55 GHz |
| Gain | 4.5 dBi |
| Height (Max) | 0.006 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 3 VA |
| Return Loss | 10 dB |
| Termination | U.FL |
