ASPI-0645-3R0N-T
ObsoleteAbracon LLC
FIXED IND 3.0UH 5.0A 17MOHMS
ASPI-0645-3R0N-T
ObsoleteAbracon LLC
FIXED IND 3.0UH 5.0A 17MOHMS
Description
General part information
ASPI-0645-3R0N-T

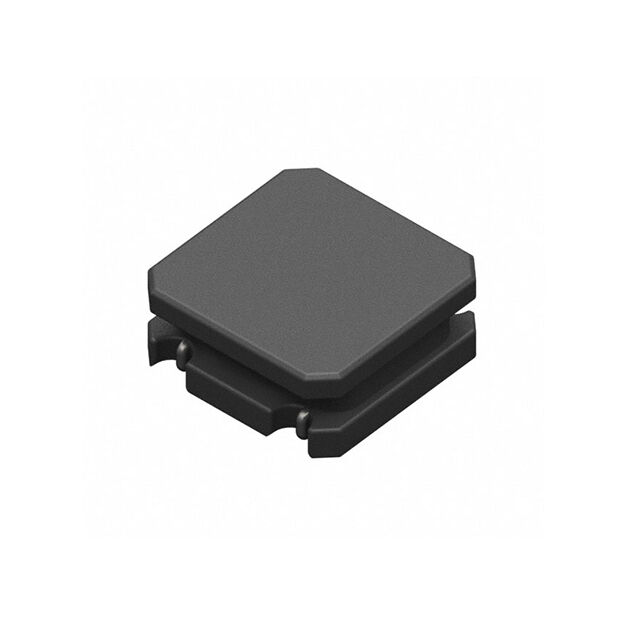

3 µH Shielded Wirewound Inductor 4.8 A 17mOhm Max 2424 (6060 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-0645-3R0N-T |
|---|---|
| Current - Saturation (Isat) | 5 A |
| Current Rating | 4.8 A |
| DC Resistance (DCR) (Max) | 17 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 2424 (6060 Metric) |
| Package Name | 2424 |
| Shielding | Shielded |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 30 % |
| Type | Wirewound |
