00584471

Unknown

Littelfuse/Commercial Vehicle Products

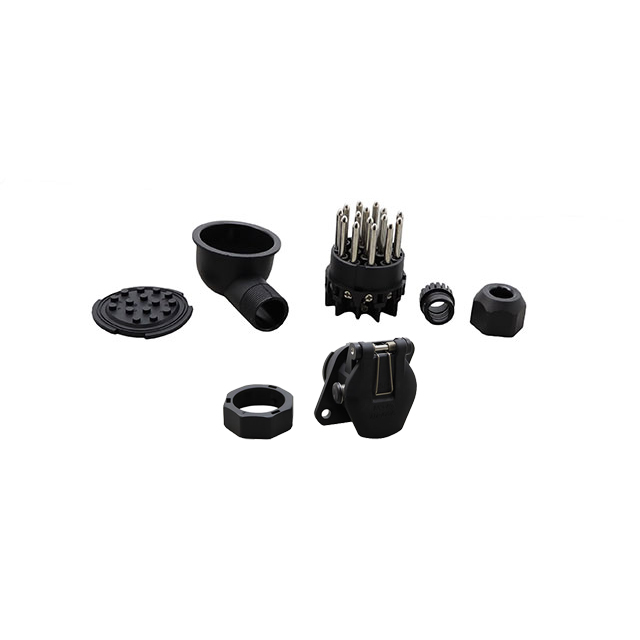

SOCKET 15P MTA BAYONET CABLE 90

Search across all available documentation for this part.

Unknown

Littelfuse/Commercial Vehicle Products

SOCKET 15P MTA BAYONET CABLE 90

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	00584471	- Series

Accessory Type	-	Face Plate, Terminal Coupling, LED or Lamps - Socket with Contacts, Protective Boot
Actuator Type	-	Standard Round
Applications	-	Industrial, Automotive
Backshell Material, Plating	-	Plastic, Aluminum
Circuit	-	SPDT
Color	-	Black, Silver
Connector Type	-	Female Sockets, Male Pins, Receptacle, Plug
Contact Finish - Mating	-	Nickel
Contact Material	-	Brass
Current Rating (Amps)	-	250 A
Fastening Type	-	Push-Pull, Bayonet Lock
Features	-	Cap (Cover), Backshell, Strain Relief
For Use With/Related Products	-	Disconnect Switch, Vehicle Connectors, BA15d Base Bulb
Illumination	-	Non-Illuminated
Ingress Protection	-	IP69K, IP67
Insert Material	-	Plastic
Mounting Feature	-	Flange
Mounting Type	-	Free Hanging (In-Line), Panel Mount
null		-
Number of Positions	-	7 - 13
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	-	N, Keyed
Primary Material	-	Plastic, Metal
Shell Material	-	Plastic, Aluminum
Shielding	-	Unshielded
Switch Function	-	Mom-Off-Mom, On-Mom
Termination	-	Solder Tabs, Screw
Termination Style	-	Connector, Quick Connect - 0.250" (6.3mm)
Voltage Rating	-	12 - 24 V
Voltage Rating - DC	-	24 V

7P 24V/S PLUG PLASTIC M'S
