MTLW-105-08-T-D-226-LL

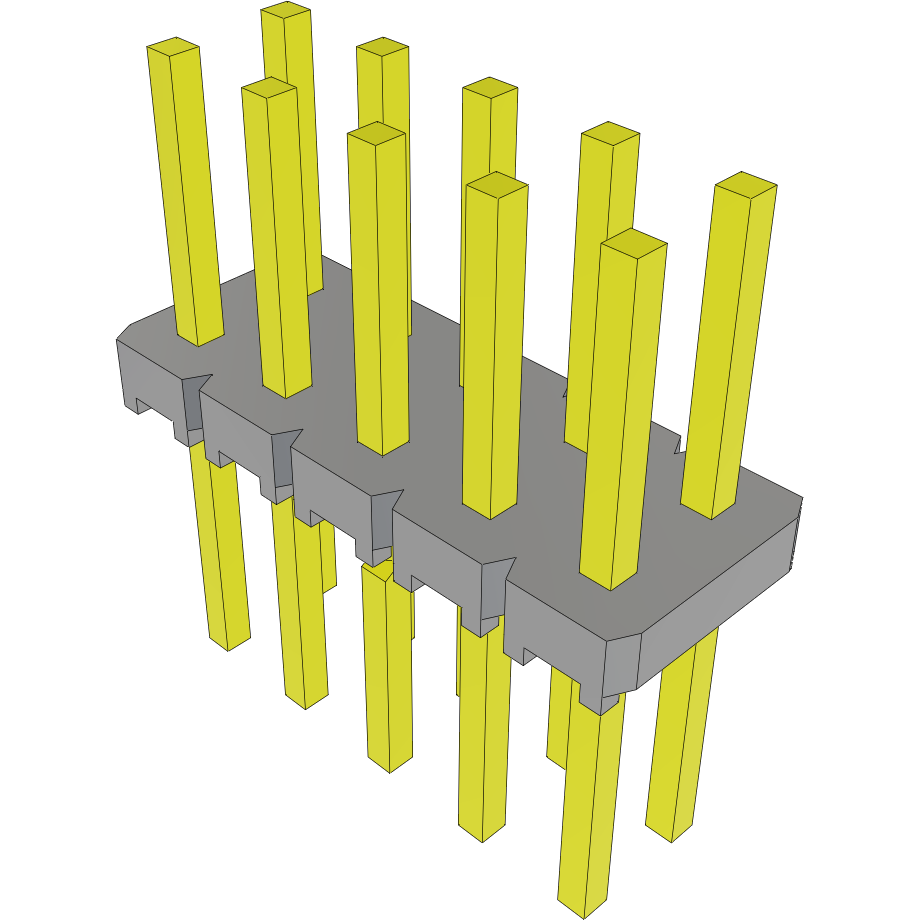

CONN UNSHROUDED HEADER HDR 10 POS 2.54MM SOLDER ST THRU-HOLE BULK
Technical Specifications
Parameters and characteristics for this part
| Specification | MTLW-105-08-T-D-226-LL |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.226 in |
| Contact Length - Post | 0.244 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Per Contact) | 5.2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.06 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Contact Length | 0.53 in |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board, Board or Cable |
| Termination | Press-Fit, Solder |
