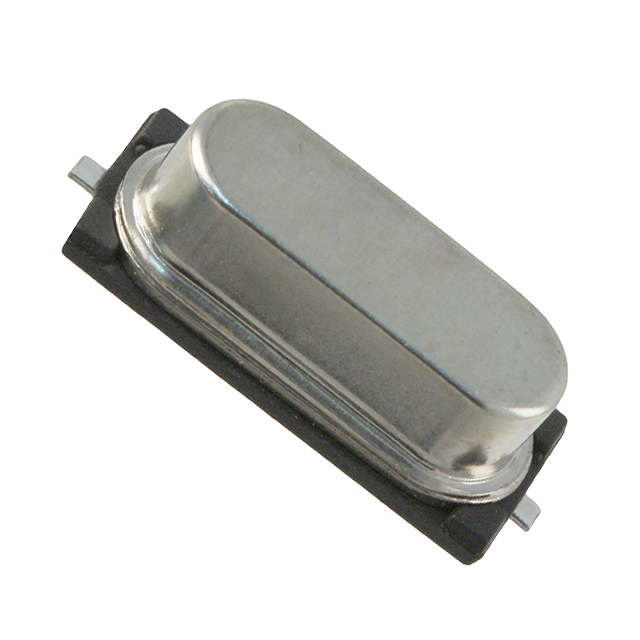

9C-7.3728MBBK-T
ObsoleteTXC CORPORATION
CRYSTAL 7.3728MHZ 20PF SMD
9C-7.3728MBBK-T
ObsoleteTXC CORPORATION
CRYSTAL 7.3728MHZ 20PF SMD
Description
General part information
9C-7.3728MBBK-T
7.3728 MHz ±50ppm Crystal 20pF 80 Ohms HC-49S
Technical Specifications
Parameters and characteristics for this part
| Specification | 9C-7.3728MBBK-T |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 7.3728 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.161 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49S, HC-49/US |
| Package Name | HC-49S |
| Size / Dimension Length | 0.449 in |
| Size / Dimension Width | 0.189 in |
| Type | MHz Crystal |
