Description
General part information
00406354

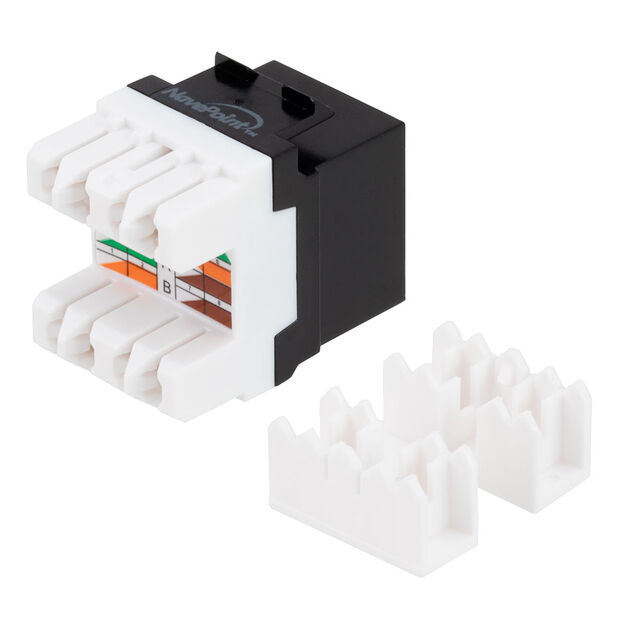

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 00406354 |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Black |
| Exterior Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Features | Strain Relief |
| Interior Contact Finish | Gold |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | Black |
| Interior Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Interior Type (Adapter End) | IDC, Punchdown Block, Pressdown |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat6 |
| Style | Modular |
