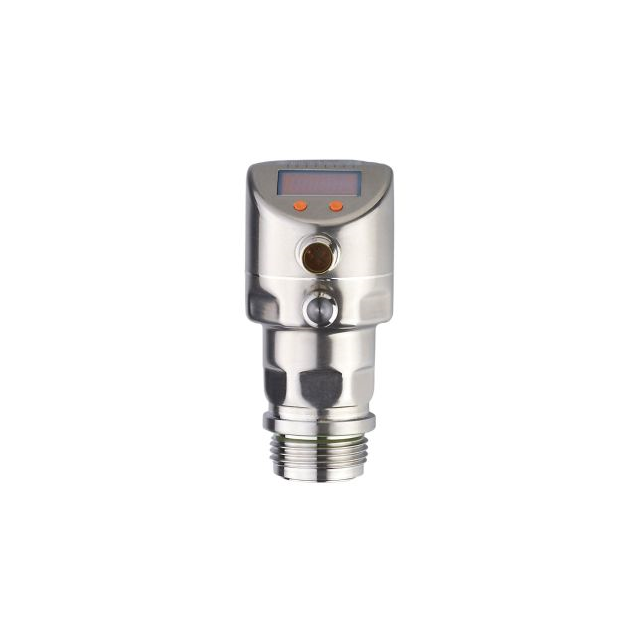

PI2799
Activeifm efector, inc.
SENSOR 14.5PSI 1" .02A
PI2799
Activeifm efector, inc.
SENSOR 14.5PSI 1" .02A
Description
General part information
PI2799
Pressure Sensor -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) Vacuum Male - 1" (25.4mm) BSPP 4 mA ~ 20 mA Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PI2799 |
|---|---|
| Accuracy | 0.2 % |
| Maximum Pressure | 435.11 PSI |
| Operating Pressure (Max) | 14.5 PSI |
| Operating Pressure (Min) | -14.5 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | NPN, NO, Analog Current, PNP- NC |
| Package / Case | Module |
| Port Diameter | 1 in |
| Port Feature | BSPP |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Vacuum |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 18 VAC |
