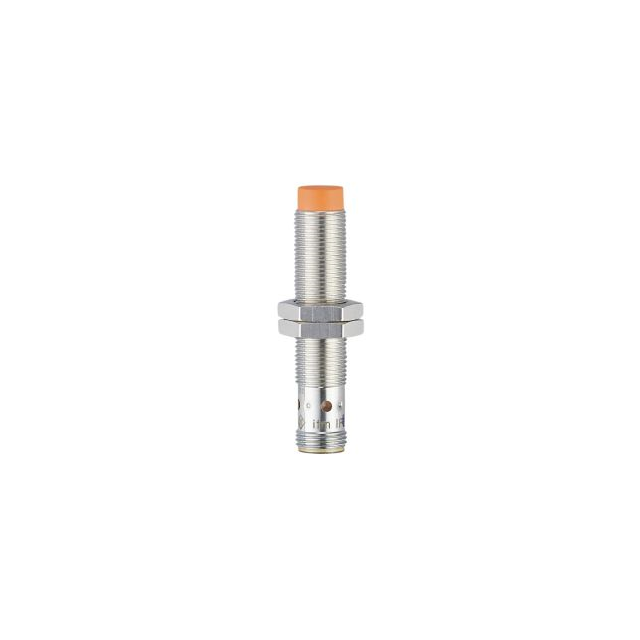

IF6124
Activeifm efector, inc.
SENSOR PROX INDUCTIV 0.7-7MM CYL
IF6124
Activeifm efector, inc.
SENSOR PROX INDUCTIV 0.7-7MM CYL
Description
General part information
IF6124
SENSOR PROX INDUCTIV 0.7-7MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | IF6124 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP68, IP67, IP66, IP65 |
| Material - Body | Polybutylene Terephthalate (PBT), Nickel-Plated Brass |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | NO, NPN, 3-Wire, PNP-NC |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance Maximum | 0.276 " |
| Sensing Distance Minimum | 0.028 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
