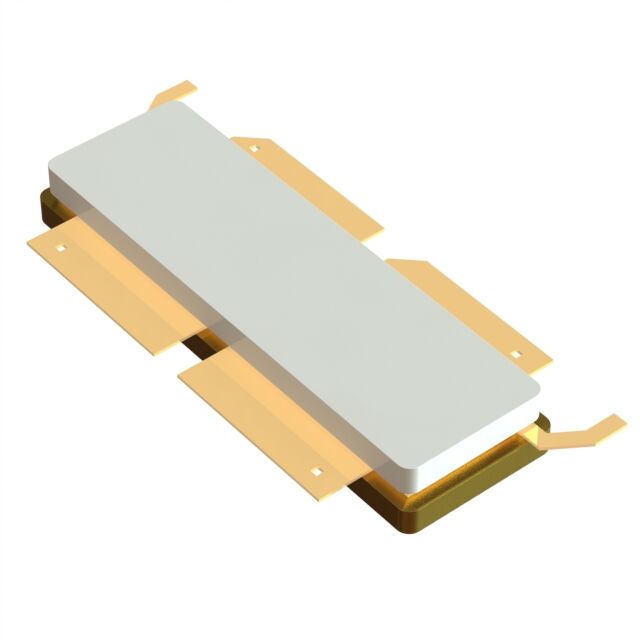

BLC8G09XS-400AVTZ

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT1258-7

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT1258-7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 32 V 880 mA 791MHz ~ 960MHz 17dB 540W SOT-1258-7

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 32V SOT1258-7

Part	Supplier Device Package	Current Rating (Amps)	Package / Case	Power - Output	Current - Test	Gain	Mounting Type	Voltage - Rated	Frequency [Min]	Frequency [Max]	Voltage - Test	Configuration
Ampleon USA Inc. BLC8G09XS-400AVTZ	SOT-1258-7	2.8 µA	SOT-1258-7	540 W	880 mA	17 dBi	Surface Mount	65 V	791 MHz	960 MHz	32 V
Ampleon USA Inc. BLC8G27LS-140AVY	DFM6		SOT-1275-1	28 W	320 mA	14.5 dBi	Chassis Mount	65 V	2.5 GHz	2.69 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G27LS-60AVY	SOT-1275-3		SOT-1275-3				Chassis Mount
Ampleon USA Inc. BLC8G27LS-210PVY	8-DFM		SOT-1251-3	65 W	1.73 A	17 dBi	Chassis Mount	65 V	2.6 GHz	2.7 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G24LS-241AVY	DFM8		SOT-1252-1	56 W		14.5 dBi	Chassis Mount	65 V			28 V	Common Source, Dual
Ampleon USA Inc. BLC8G27LS-210PVZ	8-DFM		SOT-1251-3	65 W	1.73 A	17 dBi	Chassis Mount	65 V	2.6 GHz	2.7 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G22LS-450AVY	DFM6		SOT-1258-3	85 W	1 A	14 dBi	Chassis Mount	65 V	2.11 GHz	2.17 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G22LS-450AVZ	DFM6		SOT-1258-3	85 W	1 A	14 dBi	Chassis Mount	65 V	2.11 GHz	2.17 GHz	28 V	Common Source, Dual
Ampleon USA Inc. BLC8G27LS-60AVZ	SOT-1275-3		SOT-1275-3				Chassis Mount
Ampleon USA Inc. BLC8G27LS-240AVJ	DFM8		SOT-1252-1	56 W		14 dBi	Chassis Mount	65 V	2.5 GHz	2.69 GHz	28 V	Common Source, Dual
