31-435.036

Active

EAO

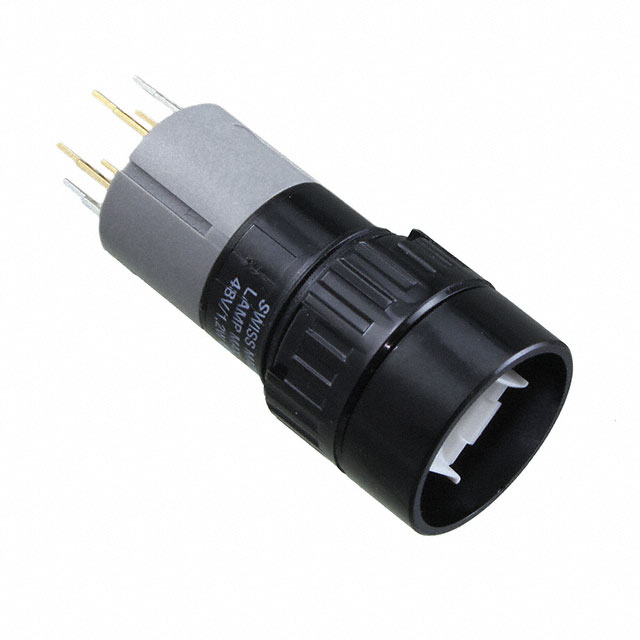

ILLUMINATED PUSHBUTTON MOM LL 1NO UT D18 GOLD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

ILLUMINATED PUSHBUTTON MOM LL 1NO UT D18 GOLD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	31-435.036

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

ILLUMINATED PUSHBUTTON MOM LL 1NO UT D18 GOLD ROHS COMPLIANT: YES

Part	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Ingress Protection	Actuator Marking	Actuator Type	Circuit	Mechanical Life	Voltage Rating - DC	Switch Function
EAO 31-435.036	Panel Mount, Front	16 mm	100 mA	42 V	Standard	55 °C	-25 °C	PC Pin, Solder Lug	IP40	No Marking	Round, Button (Not Included)	SPST-NO	5000000 Cycles	42 V	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
