1-794078-0

Active

TE Connectivity AMP Connectors

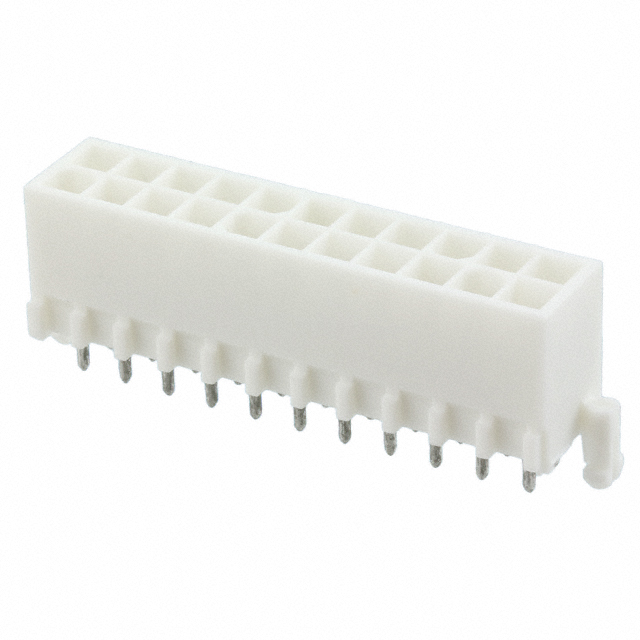

CONN HEADER VERT 22POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 22POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	1-794078-0

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 22POS 4.14MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Contact Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Applications	Mounting Type	Contact Shape	Style	Termination	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Contact Type	Insulation Material	Current Rating (Amps)
TE Connectivity AMP Connectors 1-794078-0	150 Áin	3.81 Ám	All	Tin	22 positions	Brass	Locking Ramp	4.14 mm	0.163 in	General Purpose	Through Hole	Circular	Board to Cable/Wire	Solder	White	150 Áin	3.81 Ám	85 °C	-20 C	Shrouded - 4 Wall	Header	600 VAC	4.45 mm	0.175 in	4.14 mm	0.163 in	UL94 V-0	13.5 mm	0.531 in	2	Male Pin	Nylon, Polyamide (PA)	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 22 position 0.163" (4.14mm)
