Description
General part information

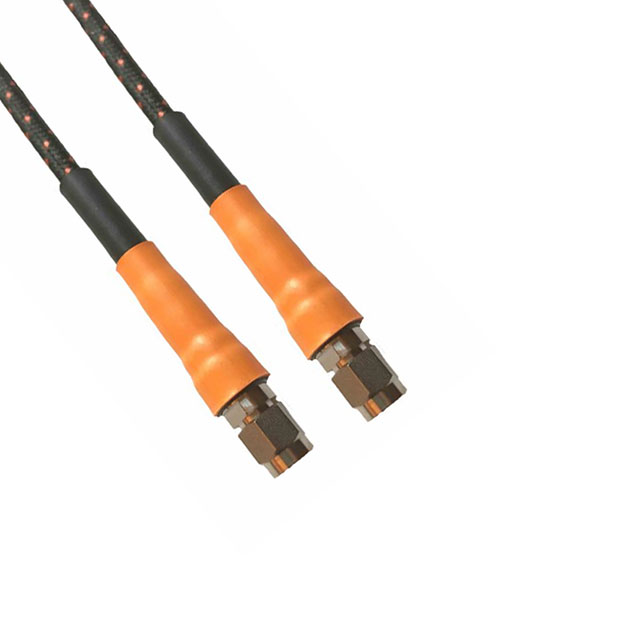

TSA89-D1D1-1M0
Cable Assembly Coaxial 2.92mm to 2.92mm 4.95mm OD Coaxial Cable 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA89-D1D1-1M0 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 4.95 mm |
| Cable Type | Coaxial Cable, 4.95mm OD Coaxial Cable, mm OD Coaxial Cable |
| Cable Type Size | 4.95 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 40 Gbps |
| Length | 39.4 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
