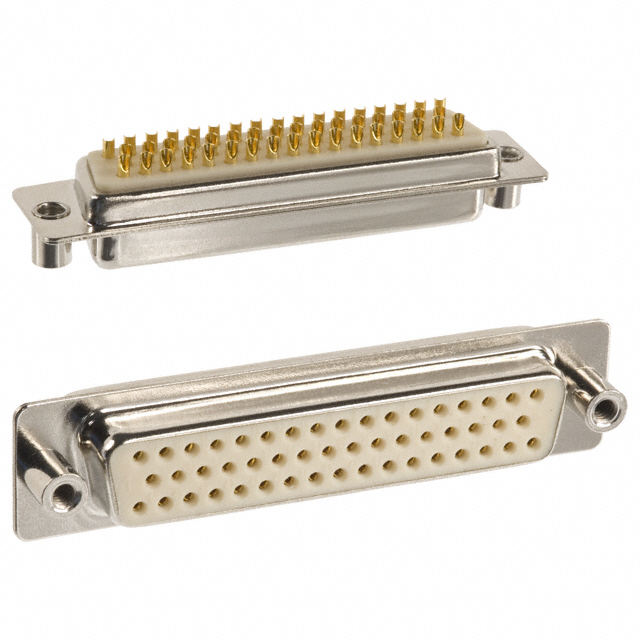

172-E50-203R031 - 172-E50-203R031

172-E50-203R031

Active
MH Connectors

D SUB CONN, RCPT, 50POS, DD, SLDR CUP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+3
172-E50-203R031 - 172-E50-203R031

172-E50-203R031

Active
MH Connectors

D SUB CONN, RCPT, 50POS, DD, SLDR CUP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+3

Technical Specifications

Parameters and characteristics for this part

Specification172-E50-203R031
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange Feature4-40
Material Flammability RatingUL94 V-0
Number of Positions50
Number of Rows3
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout5
Wire Gauge [Max]26 AWG
Wire Gauge [Min]20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 19.73
10$ 15.19
25$ 13.75
40$ 13.07
80$ 12.16
230$ 10.93
440$ 10.26
945$ 9.55
NewarkEach 1$ 15.62
10$ 13.27
25$ 12.44
50$ 12.03
100$ 11.46
250$ 10.61

Description

General part information

172-E50 Series

50 Position D-Sub Receptacle, Female Sockets Connector
