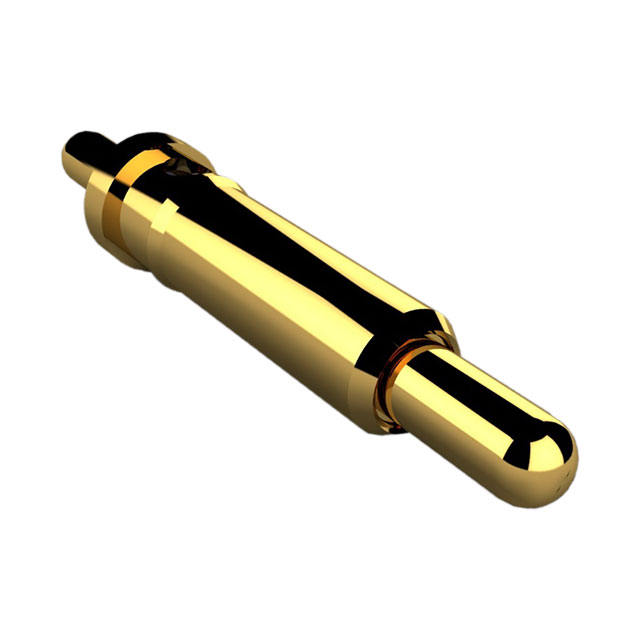

90224-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Search across all available documentation for this part.
90224-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 90224-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 0.311 in |
| Maximum Working Height [Max] | 7.9 mm |
| Minimum Working Height [Min] | 5.9 mm |
| Minimum Working Height [Min] | 0.232 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 25.49 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.83 mm |
| Pad Layout Dimension [diameter] | 0.072 in |
| Plunger Size [diameter] | 0.038 " |
| Plunger Size [diameter] | 0.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.28 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.59 | |||
| 2500 | $ 0.54 | |||
Description
General part information
90224-AS
Contact Spring Through Hole
