256-402/000-009/999-950
ActiveWAGO Corporation

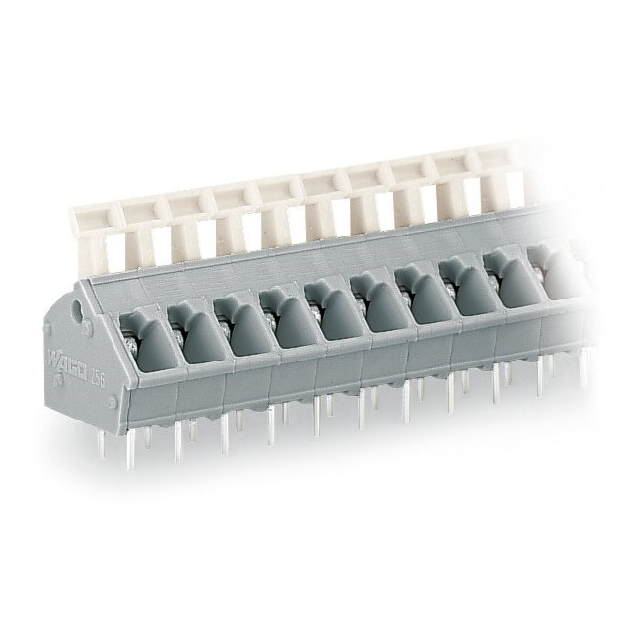

PCB TERMINAL BLOCK; PUSH-BUTTON;
256-402/000-009/999-950
ActiveWAGO Corporation
PCB TERMINAL BLOCK; PUSH-BUTTON;
Description
General part information
256-402/000-009/999-950
2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 256-402/000-009/999-950 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Features | Push Button Actuated |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 5.08 mm |
| Plating | Tin Plated |
| Positions Per Level | 2 |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Push Button Clamp, Screwless |
