C16-32.000-8-3030-X-R
ActiveAker Technology Corp

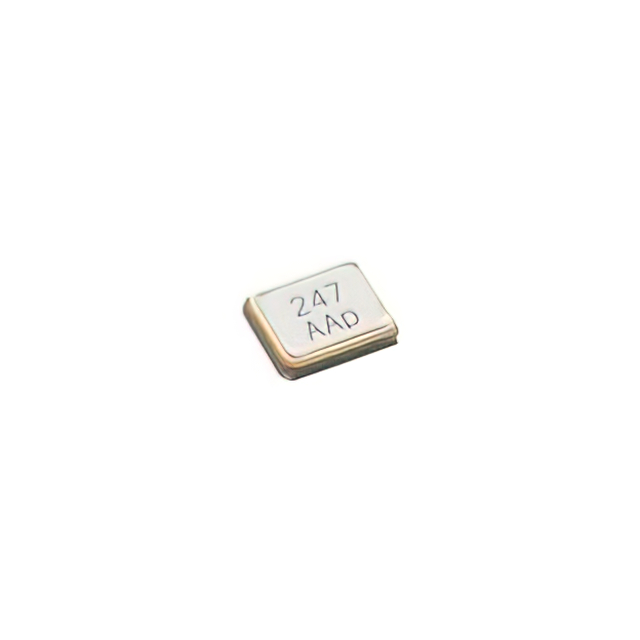

CRYSTAL 32.0000MHZ 8PF SMD
C16-32.000-8-3030-X-R
ActiveAker Technology Corp
CRYSTAL 32.0000MHZ 8PF SMD
Description
General part information
C16-32.000-8-3030-X-R
32 MHz ±30ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | C16-32.000-8-3030-X-R |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 32 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.016 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 1.6 mm |
| Package Name | 4-SMD |
| Package Width | 1.2 mm |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.047 in |
| Type | MHz Crystal |
