7-345-1PP-BA

Active

CTS Thermal Management Products

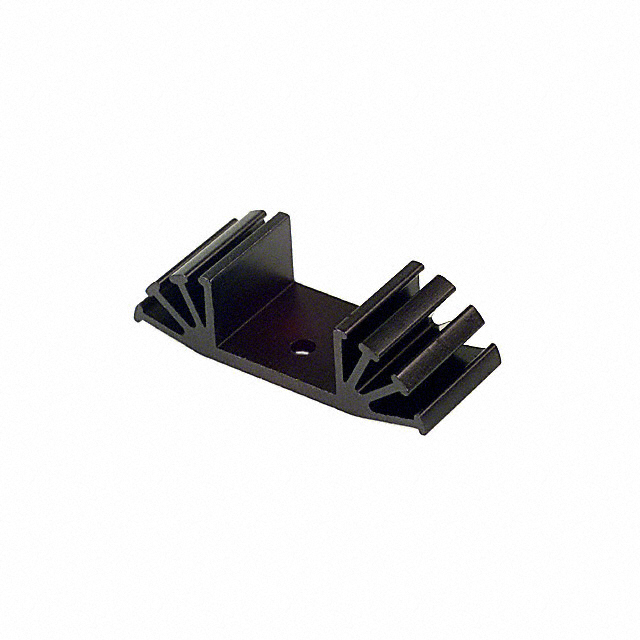

HEATSINK PWR HORZ BLACK TO-220

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK PWR HORZ BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-345-1PP-BA

Attachment Method	Bolt On
Fin Height	0.553 "
Fin Height	14.05 mm
Length	19.05 mm
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6 W
Shape	Rectangular, Fins
Thermal Resistance @ Natural	9 °C/W
Type	Board Level
Width [x]	2 in
Width [x]	50.8 mm

HEATSINK PWR HORZ BLACK TO-220

Part	Material	Type	Length	Length	Package Cooled	Width [x]	Width [x]	Power Dissipation @ Temperature Rise	Material Finish	Fin Height	Fin Height	Shape	Attachment Method	Thermal Resistance @ Natural
CTS Thermal Management Products 7-345-1PP-BA	Aluminum	Board Level	19.05 mm	0.75 in	TO-220	2 in	50.8 mm	6 W	Black Anodized	0.553 "	14.05 mm	Rectangular, Fins	Bolt On	9 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 6.0W @ 50°C Board Level
