9931 0605000

Active

Belden Inc.

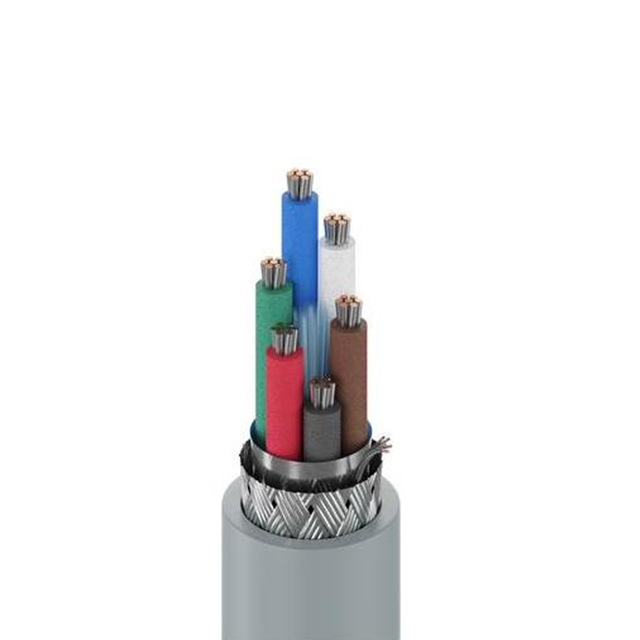

CABLE 6COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9931 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.45 mm
Jacket (Insulation) Diameter [diameter]	0.254 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Shield Material	Jacket Color	Shield Coverage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Number of Conductors	Cable Type	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Insulation	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 9931 0605000	0.889 mm	0.035 in	UL Style 2919	Aluminum Copper Tinned	Chrome	65 % 100 %	Drain Wire	6.45 mm	0.254 in	Copper Tinned	6	Multi-Conductor	Computer	32 AWG	7	24 AWG	Foam Polyethylene (FPE)	Braid Foil	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)
Belden Inc. 9931 060500	0.889 mm	0.035 in	UL Style 2919	Aluminum Copper Tinned	Chrome	65 % 100 %	Drain Wire	6.45 mm	0.254 in	Copper Tinned	6	Multi-Conductor	Computer	32 AWG	7	24 AWG	Foam Polyethylene (FPE)	Braid Foil	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.19

General part information

6 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 5000' (1524.0m)
