6153V1A90L.5

Active

TT Electronics/BI

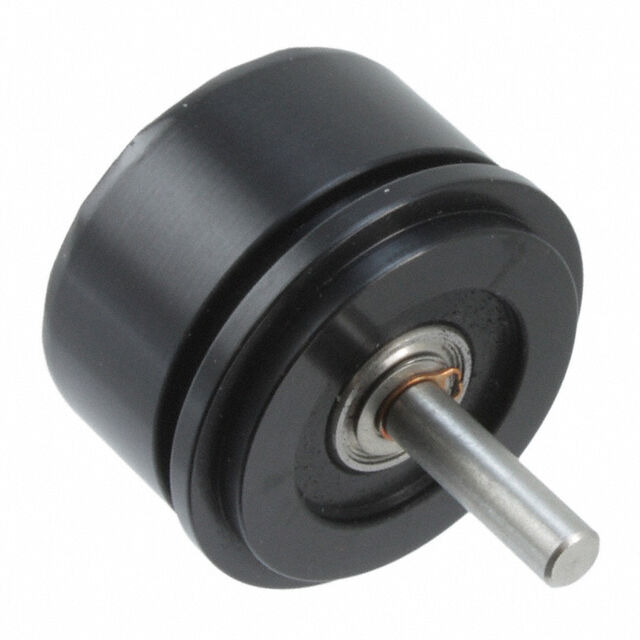

SENSOR ROTARY 360DEG SLDR TURRET

Search across all available documentation for this part.

Active

TT Electronics/BI

SENSOR ROTARY 360DEG SLDR TURRET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6153V1A90L.5	6153V Series

Actuator Type	Round Shaft	Round Shaft
For Measuring	Rotary Position	Rotary Position
Linearity	0.5 %	0.25 - 0.5 %
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Analog Voltage	Analog Voltage
Output Signal	Clockwise Increase	Clockwise Increase
Package / Case	Module, Round Shaft	Module, Round Shaft
Rotation Angle - Electrical, Mechanical [Max]	360 °	90 - 360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °	0 °
Technology	Hall Effect	Hall Effect
Termination Style	Solder Turret	Solder Turret
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

SENSOR ROTARY 360DEG SLDR TURRET

Part	Linearity	Technology	Output	Output Signal	For Measuring	Termination Style	Actuator Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Rotation Angle - Electrical, Mechanical [Max]	Operating Temperature [Max]	Operating Temperature [Min]
TT Electronics/BI 6153V1A90L.5	0.5 %	Hall Effect	Analog Voltage	Clockwise Increase	Rotary Position	Solder Turret	Round Shaft	4.5 V	5.5 V	Module, Round Shaft	360 °	125 °C	-40 °C
TT Electronics/BI 6153V1A90L.25	0.25 %	Hall Effect	Analog Voltage	Clockwise Increase	Rotary Position	Solder Turret	Round Shaft	4.5 V	5.5 V	Module, Round Shaft	90 °	125 °C	-40 °C
TT Electronics/BI 6153V1A360L.5	0.5 %	Hall Effect	Analog Voltage	Clockwise Increase	Rotary Position	Solder Turret	Round Shaft	4.5 V	5.5 V	Module, Round Shaft	360 °	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Rotary Position Round Shaft Solder Turret
