Description

General part information

BC-AG Series

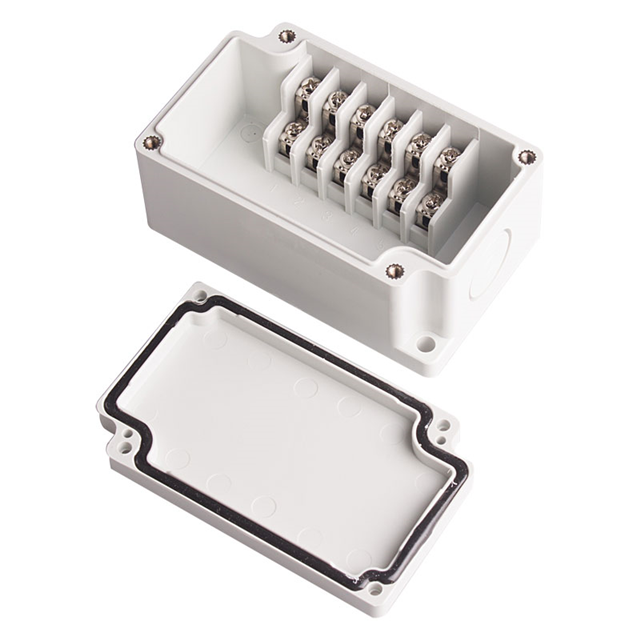

Junction Box Plastic, ABS Light Gray Lift-Off Screw Cover 3.583" L x 2.165" W (91.00mm x 55.00mm) X 1.693" (43.00mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationBC-AGG-6PH
Area (L x W)7.76 in²
ColorLight Gray
Container TypeJunction Box
DesignLift-Off Screw Cover
FeaturesSealing Gasket
Height1.693 in
MaterialABS, Plastic
Material Flammability RatingUL94 HB
RatingsIP66, NEMA 4X, 6, IP67
Size / Dimension Length3.583 in
Size / Dimension Width2.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BC-AGG-6PH | Datasheet
