1376135-1

Active

TE Connectivity AMP Connectors

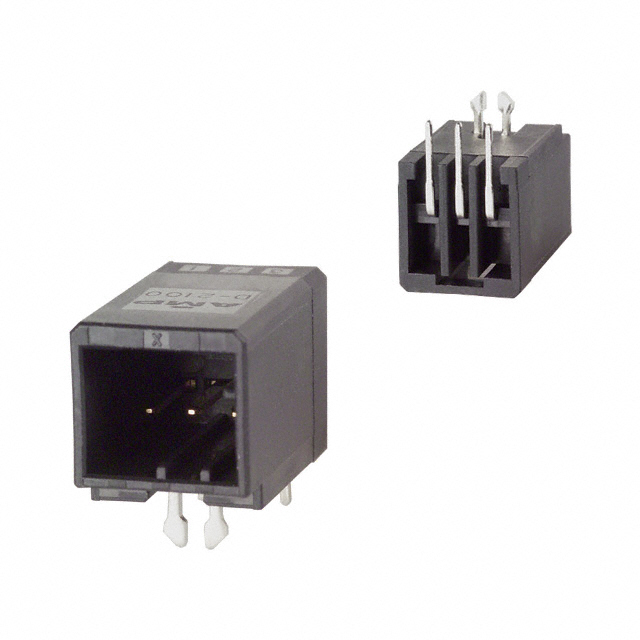

CONN HEADER R/A 3POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 3POS 2.5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376135-1	1376135 Series

Applications	General Purpose, Industrial	General Purpose, Industrial
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Length - Post	3.33 mm	3.33 mm
Contact Length - Post	0.131 "	0.131 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	5 A	5 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.431 in	0.431 in
Insulation Height	10.95 mm	10.95 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

CONN HEADER R/A 3POS 2.5MM

Part	Style	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Termination	Material Flammability Rating	Voltage Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Fastening Type	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Rows	Contact Type	Contact Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Applications	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post
TE Connectivity AMP Connectors 1376135-1	Board to Board, Cable	All	Glass Filled, Polyester, Thermoplastic	15 µin	0.38 µm	Rectangular	Solder	UL94 V-0	250 VDC	2.5 mm	0.098 in	Through Hole, Right Angle	Detent Lock	Tin	0.431 in	10.95 mm	Header	1	Tab	Copper Alloy	Gold	105 ░C	-55 °C	Shrouded - 4 Wall	General Purpose, Industrial	Black	5 A	3.33 mm	0.131 "
TE Connectivity AMP Connectors 1376135-2	Board to Board, Cable	All	Glass Filled, Polyester, Thermoplastic	15 µin	0.38 µm	Rectangular	Solder	UL94 V-0	250 VDC	2.5 mm	0.098 in	Through Hole, Right Angle	Detent Lock	Tin	0.431 in	10.95 mm	Header	1	Tab	Copper Alloy	Gold	105 ░C	-55 °C	Shrouded - 4 Wall	General Purpose, Industrial	Black	5 A	3.33 mm	0.131 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
