ACTT12X-800CTNQ

Active

WeEn Semiconductors

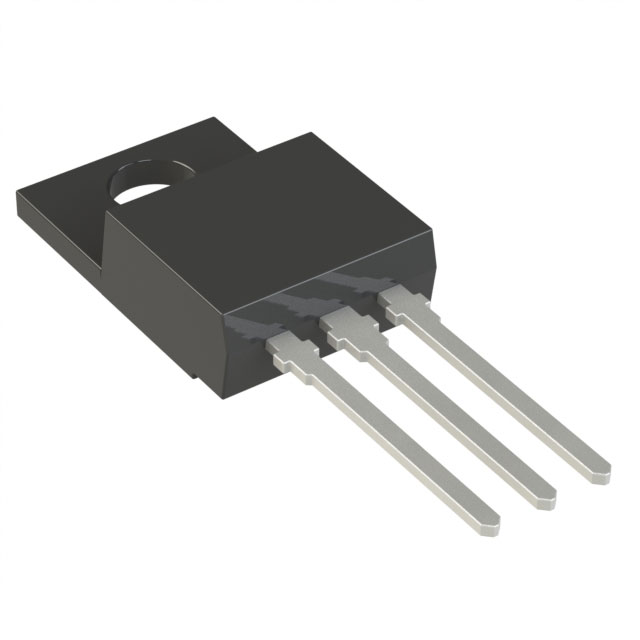

TRIAC 800V 12A TO220F

Search across all available documentation for this part.

Active

WeEn Semiconductors

TRIAC 800V 12A TO220F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.44

General part information

TRIAC Standard 800 V 12 A Through Hole TO-220F

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ACTT12X-800CTNQ	ACTT12 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	35 mA	35 mA
Current - Hold (Ih) (Max) [Max]	30 mA	30 - 50 mA
Current - On State (It (RMS)) (Max)	12 A	12 A
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature	150 °C	125 - 150 °C
Package / Case	TO-220-3 Full Pack, Isolated Tab	TO-220-3, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	TO-220F	TO-220AB, D2PAK, TO-220F
Triac Type	Standard	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 V
Voltage - Off State	800 V	800 V

TRIAC 800V 12A TO220AB

Part	Configuration	Current - Hold (Ih) (Max) [Max]	Supplier Device Package	Operating Temperature	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Triac Type	Voltage - Off State	Current - On State (It (RMS)) (Max)	Mounting Type
WeEn Semiconductors ACTT12-800CTQ	Single	50 mA	TO-220AB	150 °C	1 V	35 mA	TO-220-3	Standard	800 V	12 A	Through Hole
WeEn Semiconductors ACTT12-800CTNQ	Single	30 mA	TO-220AB	150 °C	1 V	35 mA	TO-220-3	Standard	800 V	12 A	Through Hole
WeEn Semiconductors ACTT12-800CQ	Single	50 mA	TO-220AB	125 ¯C	1 V	35 mA	TO-220-3	Standard	800 V	12 A	Through Hole
WeEn Semiconductors ACTT12B-800CJ	Single	50 mA	D2PAK	125 ¯C	1 V	35 mA	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	Standard	800 V	12 A	Surface Mount
WeEn Semiconductors ACTT12X-800CTNQ	Single	30 mA	TO-220F	150 °C	1 V	35 mA	TO-220-3 Full Pack, Isolated Tab	Standard	800 V	12 A	Through Hole
WeEn Semiconductors ACTT12X-800CQ	Single	50 mA	TO-220F	125 ¯C	1 V	35 mA	TO-220-3 Full Pack, Isolated Tab	Standard	800 V	12 A	Through Hole
WeEn Semiconductors ACTT12B-800CTJ	Single	50 mA	D2PAK	150 °C	1 V	35 mA	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	Standard	800 V	12 A	Surface Mount
WeEn Semiconductors ACTT12B-800CTNJ	Single	30 mA	D2PAK	150 °C	1 V	35 mA	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	Standard	800 V	12 A	Surface Mount
WeEn Semiconductors ACTT12X-800CTQ	Single	50 mA	TO-220F	150 °C	1 V	35 mA	TO-220-3 Full Pack, Isolated Tab	Standard	800 V	12 A	Through Hole
