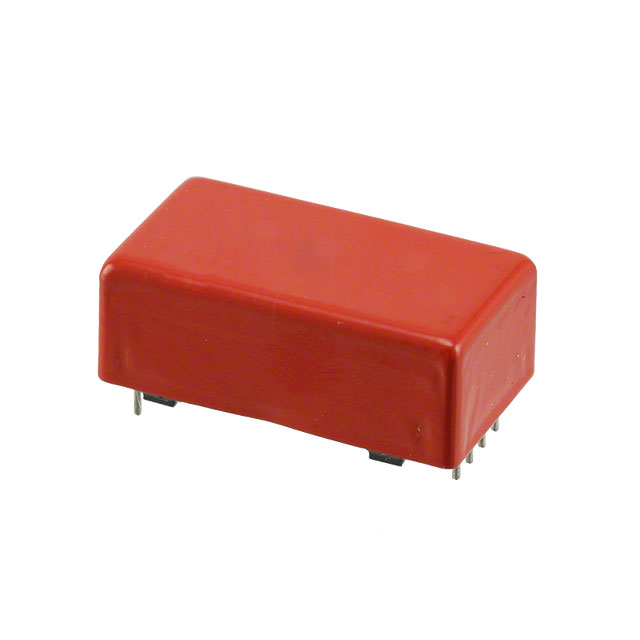

3650-05-92
ActiveCoto Technology
RELAY REED 3PST 250MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3650-05-92 |
|---|---|
| Coil Current | 14.3 mA |
| Coil Resistance | 350 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 750 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.1 ms |
| Switching Voltage | 150 VDC, 150 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 25.96 | |
| 10 | $ 22.68 | |||
| 25 | $ 21.49 | |||
| 50 | $ 20.64 | |||
| 100 | $ 19.81 | |||
| 250 | $ 18.77 | |||
| 500 | $ 18.03 | |||
Description
General part information
3650 Series
RELAY REED 3PST 250MA 5V
