8465 0605000

Active

Belden Inc.

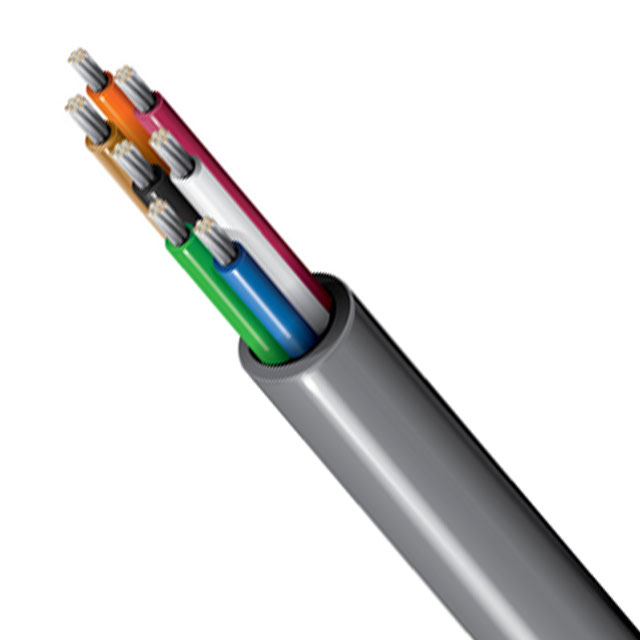

CABLE 5COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8465 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.16 mm
Jacket (Insulation) Diameter [diameter]	0.282 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Number of Conductors	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2598
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Number of Conductors	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Cable Type	Conductor Insulation	Length	Length	Ratings	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material
Belden Inc. 8465 060U1000	5	300 V	Chrome	7.16 mm	0.282 in	19	30 AWG	18 AWG	0.838 mm	0.033 in	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	UL Style 2598	Audio Control Instrumentation	-20 C	60 °C	Poly-Vinyl Chloride (PVC)
Belden Inc. 8465 0605000	5	300 V	Chrome	7.16 mm	0.282 in	19	30 AWG	18 AWG	0.838 mm	0.033 in	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)			UL Style 2598	Audio Control Instrumentation	-20 C	60 °C	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.54

General part information

5 Conductor Multi-Conductor Cable Chrome 18 AWG 5000' (1524.0m)
