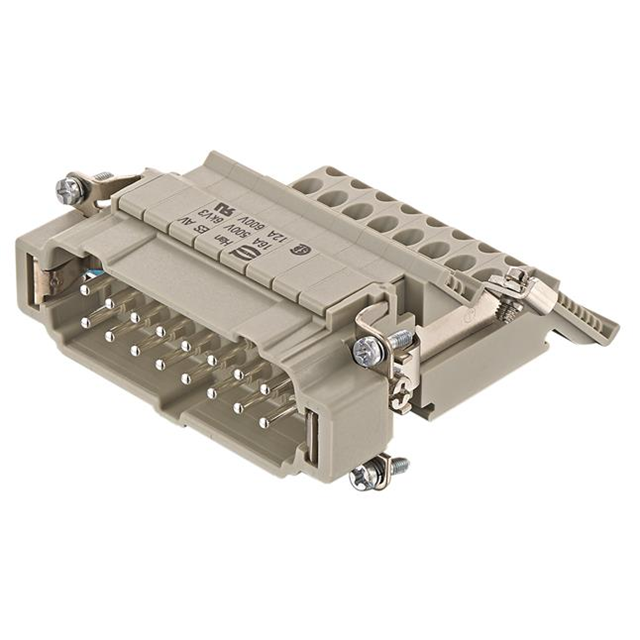

Specification	09330164639

Color	Gray
Connector Type	Insert
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating	12 A
Gender	Male
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	16
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Position Types	Ground
Termination Style	Terminal Block, Straight - Push In
Voltage Rating	500 V

09330164 Series

Part	Housing Material	Contact Material	Material Flammability Rating	Contact Finish	Color	Current Rating	Termination Style	Gender	Connector Type	Number of Positions	Position Types	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)
HARTING 09330064726	PC Polycarbonate	Copper Alloy	UL94 V-0	Silver	Gray	16 A	Straight - Screw Terminal Block	Female	Insert	6	Ground	500 V
HARTING 09330064639	PC Polycarbonate	Copper Alloy	UL94 V-0	Silver	Gray	12 A	Straight - Push In Terminal Block	Male	Insert	6	Ground	500 V	125 °C	-40 °C
HARTING 09330064636	PC Polycarbonate	Copper Alloy	UL94 V-0	Silver	Gray	16 A	Straight - Screw Terminal Block	Male	Insert	6	Ground	500 V
HARTING 09330064739	PC Polycarbonate	Copper Alloy	UL94 V-0	Silver	Gray	12 A	Straight - Push In Terminal Block	Female	Insert	6	Ground	600 V	125 °C	-40 °C
