100025301

Active

Telegartner Inc

4.3-10 JCK STR FLNG SD/SD G9

Search across all available documentation for this part.

Active

Telegartner Inc

4.3-10 JCK STR FLNG SD/SD G9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

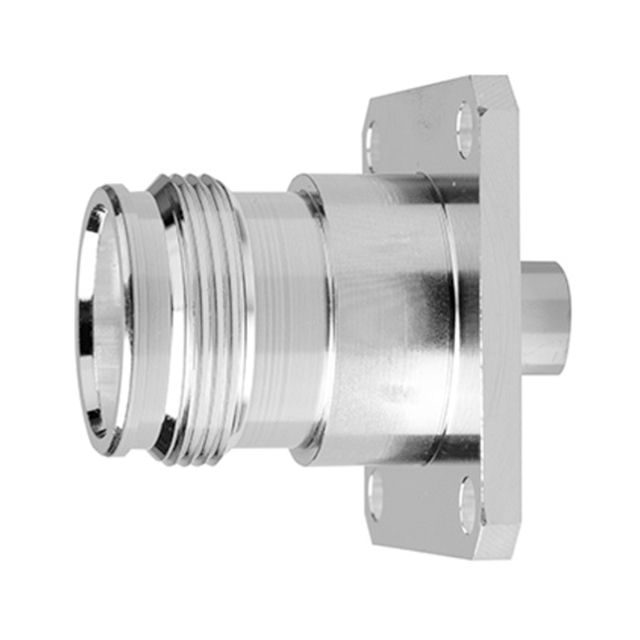

4.3/10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

Specification	100025301	J01441B0 Series

Body Finish	Silver	Silver
Body Material	Brass	Brass
Center Contact Material	Copper Alloy	Copper Alloy
Center Contact Plating	Silver	Silver
Connector Style	4.3/10	4.3/10
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mounting Feature	Flange	Flange
Number of Ports	1	1
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder

Part	Number of Ports	Dielectric Material	Center Contact Material	Body Material	Shield Termination	Body Finish	Mounting Feature	Connector Style	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Connector Type	Center Contact Plating	Housing Color	Contact Termination
Telegartner Inc 100025301	1	Polytetrafluoroethylene (PTFE)	Copper Alloy	Brass	Solder	Silver	Flange	4.3/10	6000 MHz	90 °C	-55 °C	50 Ohms	Female Socket, Jack	Silver	Silver	Solder
Telegartner Inc 100025300	1	Polytetrafluoroethylene (PTFE)	Copper Alloy	Brass	Solder	Silver	Flange	4.3/10	6000 MHz	90 °C	-55 °C	50 Ohms	Female Socket, Jack	Silver	Silver	Solder
