APTGF150A120T3AG
ObsoleteMicrochip Technology
IGBT MODULE 1200V 210A 1041W SP3

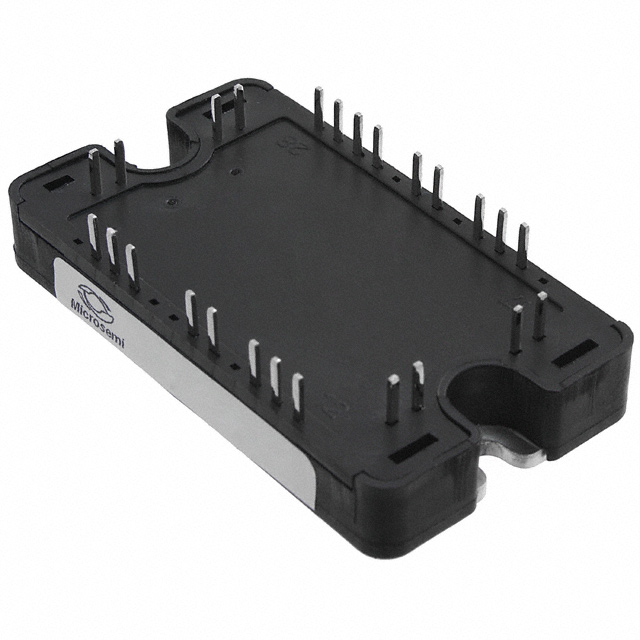

APTGF150A120T3AG
ObsoleteMicrochip Technology
IGBT MODULE 1200V 210A 1041W SP3
Description
General part information
APTGF150A120T3AG
IGBT Module NPT Half Bridge 1200 V 210 A 1041 W Chassis Mount SP3
Technical Specifications
Parameters and characteristics for this part
| Specification | APTGF150A120T3AG |
|---|---|
| Configuration | Half Bridge |
| Current - Collector (Ic) (Max) | 210 A |
| Current - Collector Cutoff (Max) | 250 µA |
| IGBT Type | NPT |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 9.3 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | SP3 |
| Package Name | SP3 |
| Power - Max | 1041 W |
| Vce(on) (Max) | 3.7 V |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
