581EL10002CAT
ActiveCTS-Frequency Controls
XTAL OSC VCTCXO 10.0000MHZ HCMOS
581EL10002CAT
ActiveCTS-Frequency Controls
XTAL OSC VCTCXO 10.0000MHZ HCMOS
Description
General part information
581EL10002CAT

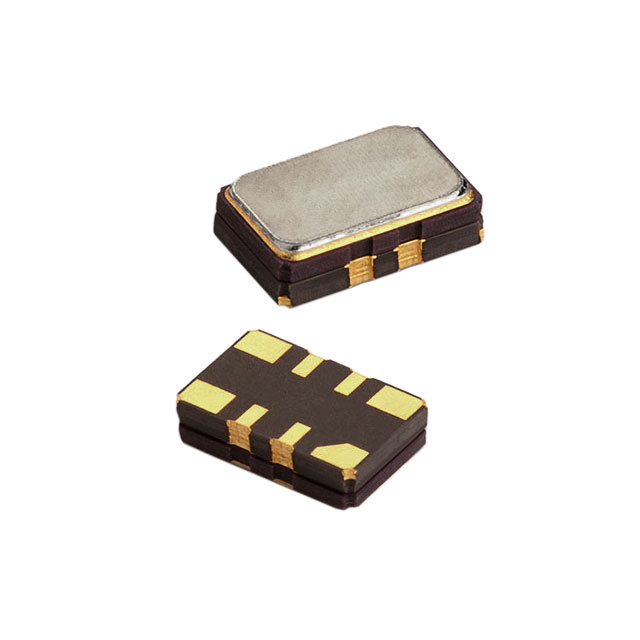

10 MHz VCTCXO HCMOS Oscillator 3.3V Enable/Disable 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 581EL10002CAT |
|---|---|
| Absolute Pull Range (Maximum) | 5 ppm |
| Absolute Pull Range (Minimum) | -5 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) | 9.5 mA |
| Frequency | 10 MHz |
| Frequency Stability | 200 ppb |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | HCMOS |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
