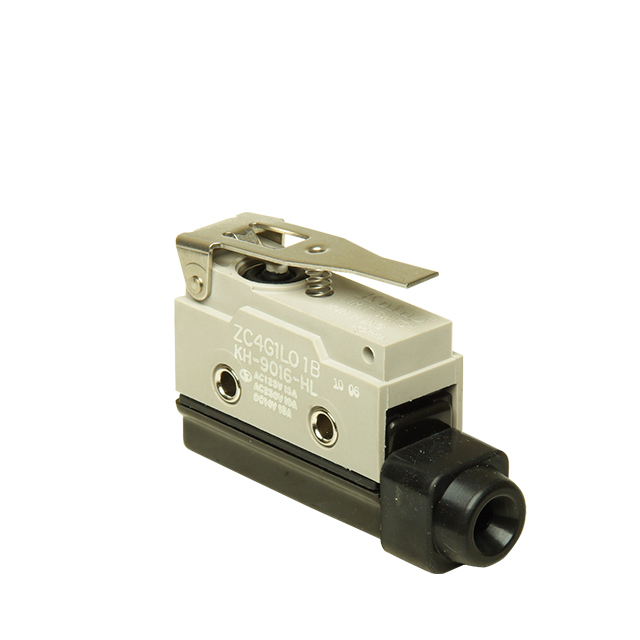

KH-9016-HL
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KH-9016-HL |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating | 15 A |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 300 gf |
| Operating Position (Length) | 1.024 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.079 in |
| Pretravel (Length) | 0.234 in |
| Release Force | 80 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
