1802676
ActivePhoenix Contact
TERM BLOCK HDR 4POS VERT 5.08MM
1802676
ActivePhoenix Contact
TERM BLOCK HDR 4POS VERT 5.08MM
Description
General part information
1802676

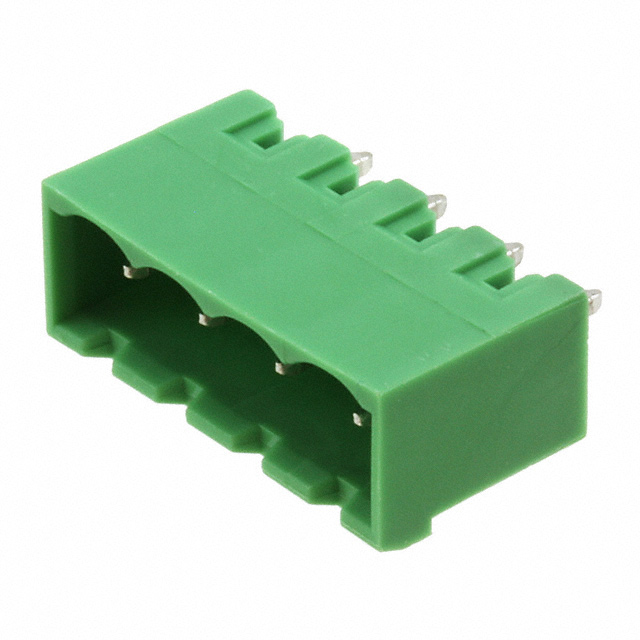

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1802676 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 12 A |
| Header Orientation | Vertical |
| Insulation Height | 0.472 in |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 5.08 mm |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 250 V |
